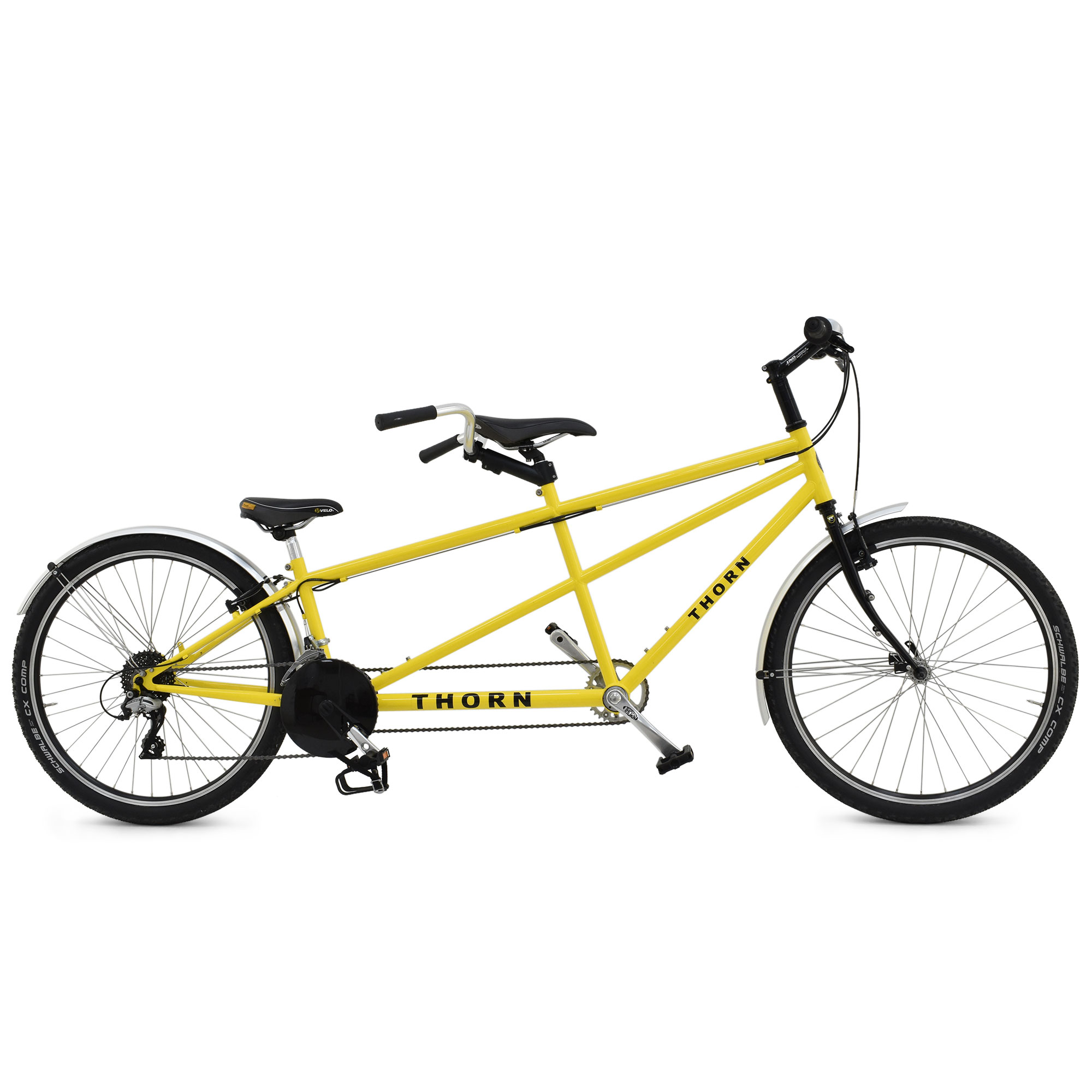

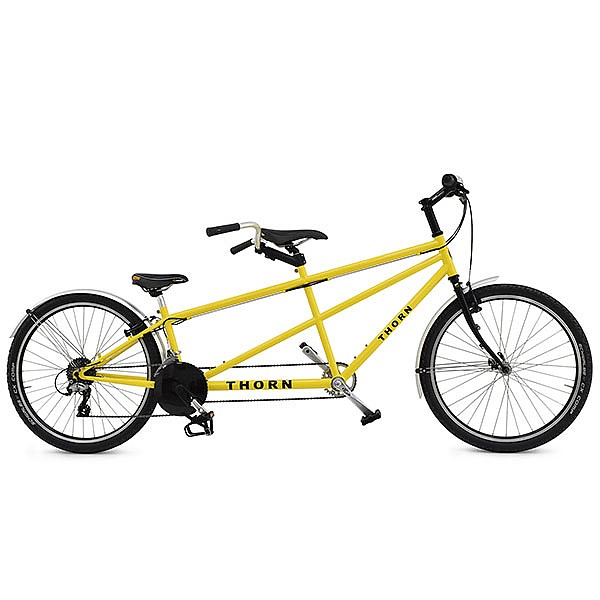

Thorn Voyager Childback MTB Leisure Tandem M/XXS double drilled cranks - Yellow - Used

A Used Thorn Voyager Tandem in a very tidy condition , it has had a full service and ready for a new home . Ideal for the school commute and taking a holiday with the children.
The Childback Tandem will transform cycling with your child either on the road or the trail. You stay in control when the situation dictates and can maintain speed when your little one is flagging. This is without doubt the best way to enjoy cycling with a little one! Sized to suit a child of 3 1/2 to 10 years (S = minimum seat height of 530 mm - from saddle to pedal) and a pilot from 5'5" to 5'11".
Always use pedals with toe clips and straps for the child on the back.

Sizing / Dimensions
Size: M / XXS
Virtual top tube: (P) 550mm
Overall Length: 1.7 m (fork & frame - excludes wheels)
Actual Seat Tube: (P) 510mm / (s) 340mm
Standover behind Headset: (P) 830mm
Standover at Mid-Tube: (P) 760 / (s) 640mm
Saddle heights pilot 780mm and stoker 540mm - we maybe able to get lower if needed .


Frameset : Thorn 2019 Voyager Tandem Frame - Yellow - Small / XX Small, Thorn Raven Twin Tandem Fork Twin Plate 1 1/8inch Ahead Gloss Black - Front Boss.
Transmission : SRAM twist shifters 8 speed , 11-32 Shimano Cassette, 26/36/48 chainrings, x8 Chain, Shimano front and rear mechs.
Pilot Thorn Tandem Crankset for X-Over Drive -Silver - 170 mm, Thorn 104mm BCD 5 Arm Reversible Connecting Chainrings 3/32 Inch - Black - 36T.
Stoker Thorn Double Drilled Crank Arms 115 mm / 140 mm X-Over for Rear of Tandem - Silver
Braking : Shimano Deore V brakes front and rear.
Handlebars : Pilot Thorn 6061 Alloy Flat Handlebars - 5 Deg - 25.4mm Clamp - 580mm - Silver and Stoker Raleigh North Rounder Handlebar - 25.4mm Clamp - Silver - 610mm,
Pilot Kalloy AS-009 UNO 1 1/8 Inch Ahead Stem +17 Deg - 25.4mm Clamp - Black - 120mm and SRAM racing grips front.
Stoker SJSC Adjustable Tandem Stoker Stem,gel grips rear,
Wheels : 26 559 Wheelset 36h with Shimano Deore LX Hubs in Silver. Fitted with Schwalbe CX Comp 26 x 2.00 inch Tyres and Presta tubes.
Accessories : Bell Black, SKS Chromoplastic Mudguard Set - 26"" x 55mm Silver. Velo deluxe Saddle - Black, Velo Plush Junior Gel Saddle - Black.
Pilot flat pedals , stoker plastic junior pedals with cages and straps.

We would be happy to fit a rear pannier rack if required and front low loaders please discuss .


If ordered online for delivery the bike will be partially dismantled for shipping, you will require good mechanical competence to reassemble, or you will need to have a professional cycle mechanic re-assemble, typically this takes 2 hours.

Please phone 01278441505 for a delivered quote 95% assembled.
