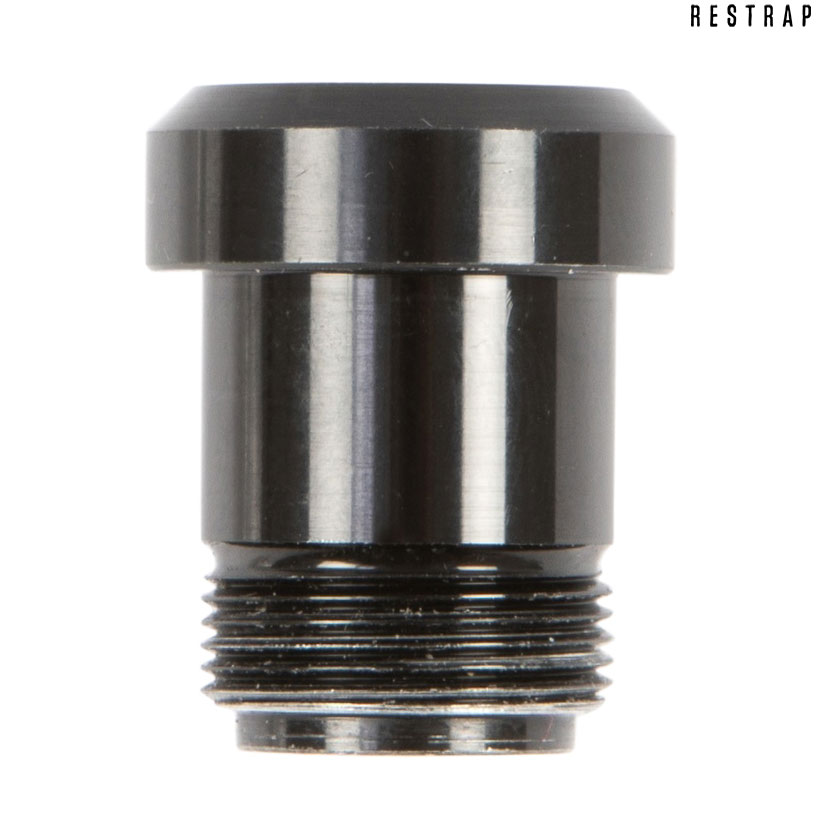

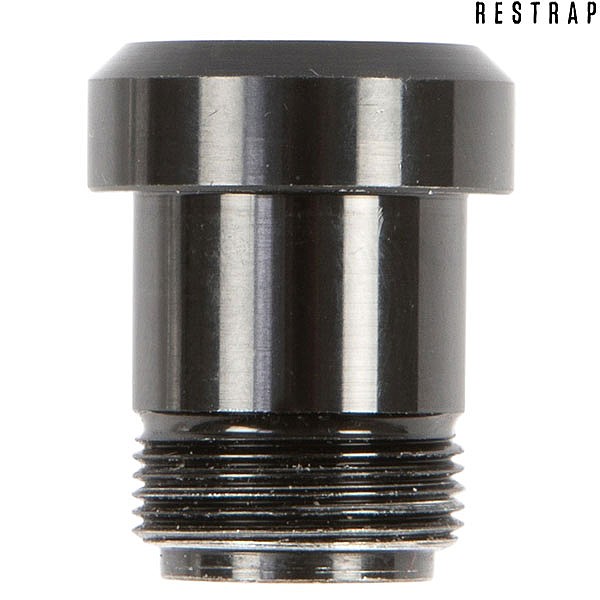

Restrap Switch Full Mount Adaptor - FM23

A direct replacement for SRAM's Full Mount Bolt Kit, designed to enable compatibility with Restrap's Switch Axle and Switch Rack System on GX, XX, and X0 T-Type transmissions.

Available in two variations.

Determining what bolt kit you need:

Full Mount Adaptor FM23 (GX):
- GX Eagle Transmission: RD-GX-E-B1
- Force XPLR AXS Transmission: RD-FRC-1E-E1
- Rival XPLR AXS Transmission: RD-RIV-1E-E1
- Eagle 70 Transmission: RD-70-A1
- Eagle 90 Transmission: RD-90-A
- S1000 Eagle Transmission: RD-S1000-E-A1

Full Mount Adaptor FM24 (XX/XO):
- XX SL Eagle Transmission: RD-XX-SLE-B1
- XX Eagle Transmission: RD-XX-E-B1
- X0 Eagle Transmission: RD-XO-E-B1
- Red XPLR AXS Transmission: RD-RED-1E-E1

Fitting:
- Put your bike into the red setting gear on the cassette and engage the clutch release
- Partially remove your current thru-axle
- Undo and remove the bolt derailleur with an 8mm hex key
- Replace with the Restrap bolt, using the supplier adaptor if you do not have a 12mm hex key
- Swap in the Switch Axle and tighten

Compatibility:
- Designed for use with Restrap Switch Axle, 1mm thread pitch

Dimensions:
- FM23 (GX): Diameter 23mm x Height: 28.80mm
- Weight: 13.8g
- Torque: 35Nm
