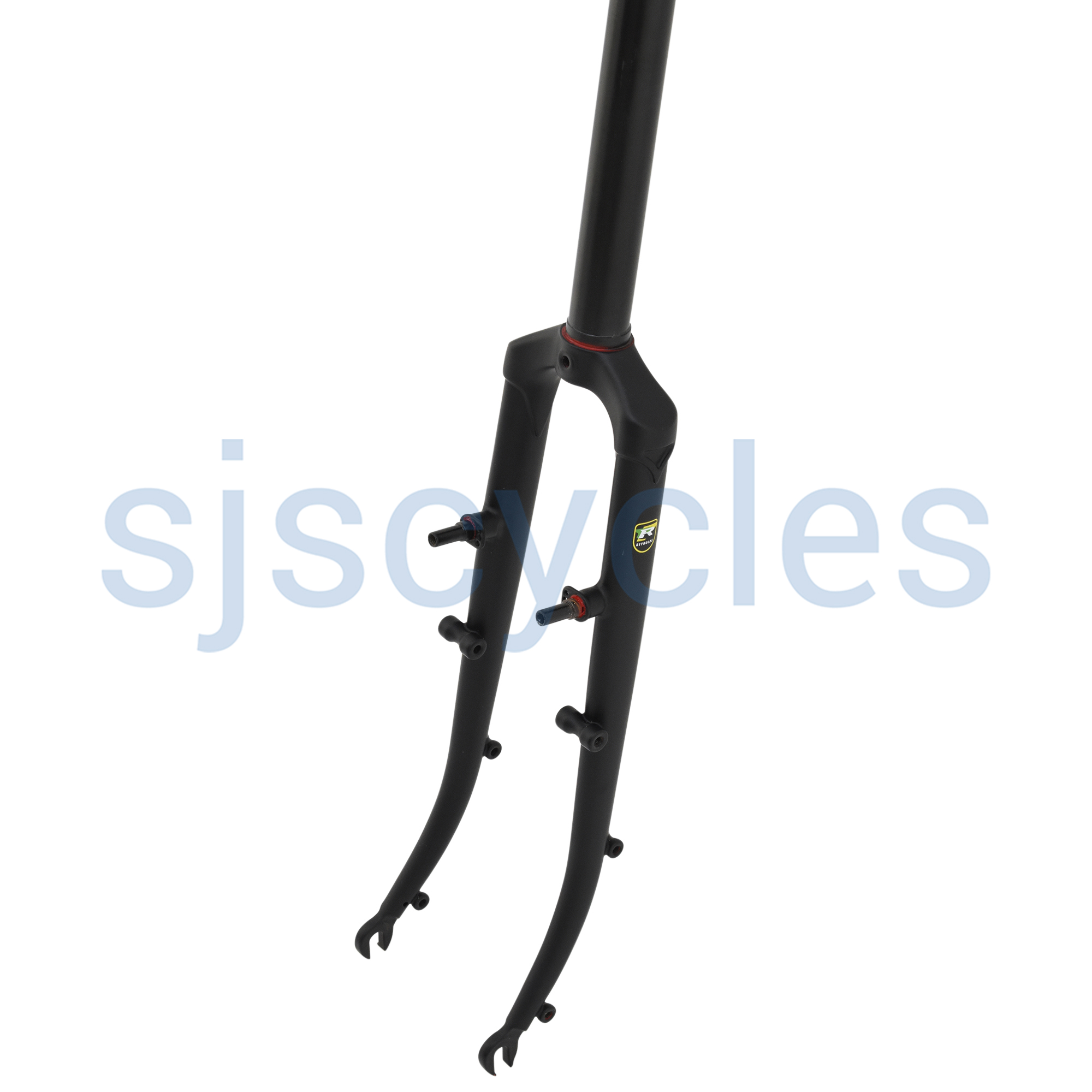

26 inch Thorn ST26 Steel Fork - Black - 52 mm Offset- SECONDS

This is a SECOND , its never been fitted or cut down, missing labelling, possibly resprayed Black .

- The heavy duty touring fork option for Sherpa Mk3 and Raven frames it is for 26” wheels (559)
- This fork has clearance for 2.00” tyres. It measures 370mm from axle to crown race seat and has a 380mm long, 1 1/8" diameter steerer
- It has M5 stainless steel bosses for the direct and secure fitting of mudguards as well as bosses for lo-loader carriers
- The fork has V brake bosses on the front of the blades, at the perfect height for 559 rims
- It uses a cast crown which has an M6 thread for a dynamo lamp boss
- The blades are manufactured by Reynolds in “SUPER TOURIST” gauge and have a comfortable, tight radius bend with safety dropouts
- These forks can carry up to a maximum of 7.5Kg on each side

Steerer: 1 1/8"
52 mm rake


For frame sizes 475M / 500S / 500L / 530S / 565S / 420-ST (Step-Through) please use fork with 52 mm offset

We recommend item # 65968 Thorn Fork Workshop Prep (Includes all threads tapped and stainless bolts fitted for racks and mudguard, and a cavity spray).
