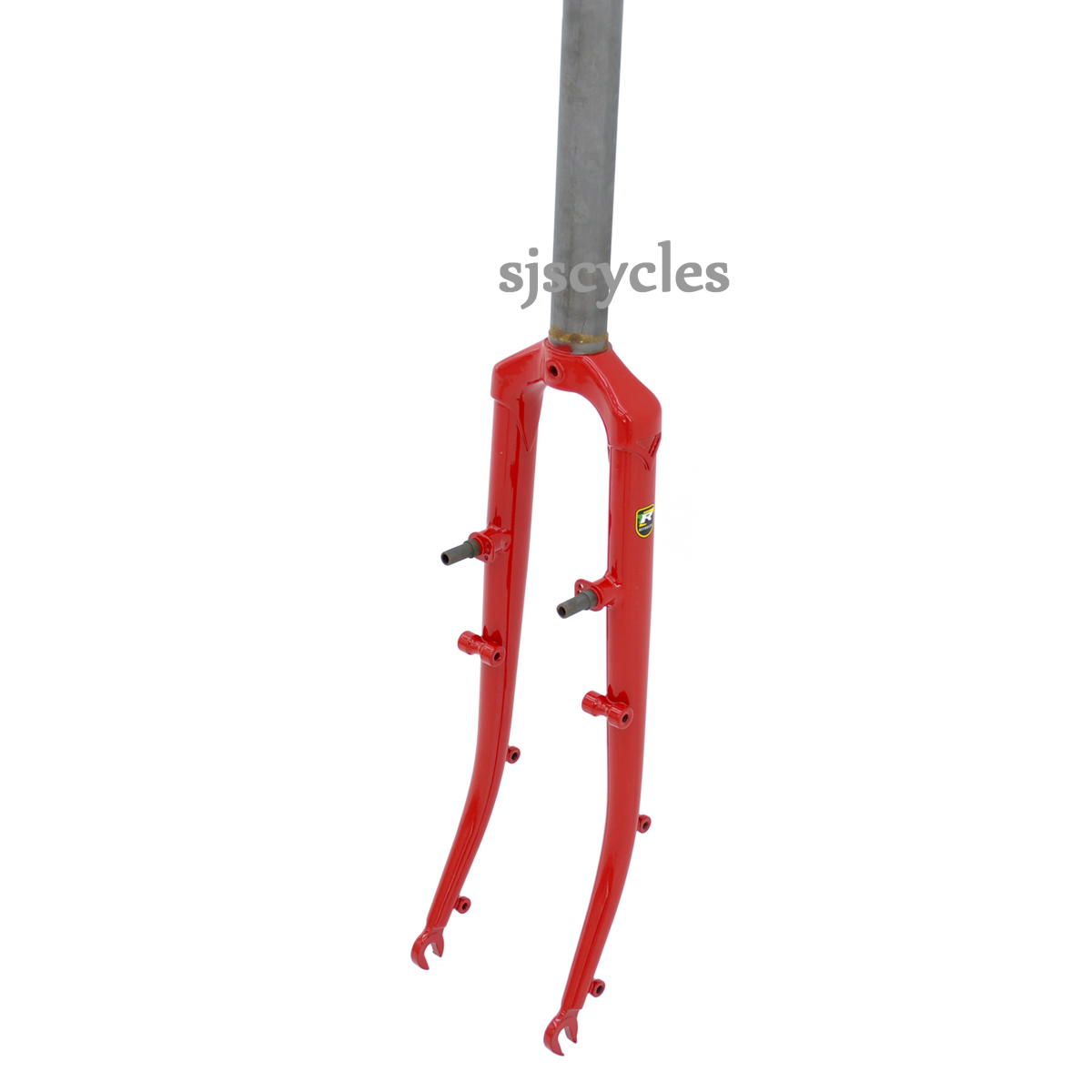

26 inch Thorn ST26 Steel Fork - Red

£120.00
was
Offset
£120.00 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Details
- The heavy duty touring fork option for Sherpa Mk3 and Raven frames it is for 26” wheels (559)
- This fork has clearance for 2.15” tyres. It measures 370mm from axle to crown race seat and has a 400mm long, 1 1/8" diameter steerer
- It has M5 stainless steel bosses for the direct and secure fitting of mudguards as well as bosses for lo-loader carriers
- The fork has V brake bosses on the front of the blades, at the perfect height for 559 rims
- It uses a cast crown which has an M6 thread for a dynamo lamp boss
- The blades are manufactured by Reynolds in “SUPER TOURIST” gauge and have a comfortable, tight radius bend with safety dropouts
- These forks can carry up to a maximum of 7.5Kg on each side

Steerer: 1 1/8"
Available in 46 or 52 mm rake.

For frame sizes 530L / 565L / 600S / 600L please use fork with 46 mm offset
For frame sizes 475M / 500S / 500L / 530S / 565S / 420-ST (Step-Through) please use fork with 52 mm offset
Related Products
Product Reviews (0)
Questions & Answers (3) Q & A
Specification
Downloads
Download File
Related products
Thorn Raven Frame - Red Thorn Raven Frame - Red £529 Inc VAT Quick view
Thorn Sherpa MK3 Frame - Red Thorn Sherpa MK3 Frame - Red £459 Inc VAT Quick view
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (3)
Can I use this fork with an early 90s mtb frame?
By
13 Nov 2021
Hi,
I have got an early 90s Trek 970zx frame (seatpost angle 73d., headtube angle 71d., 57mm travel): is this fork useful? If yes, do I need a 46mm of 52mm offset.
Thank you!
For any information or advice on any of Thorns bikes, frames or forks please contact out dedicated Thorn bikes sales team either on 01278 441505 or [email protected] and they'll be able to provide you with all of the information you need.
1” threaded
By
18 Sep 2020
Do you have this in a threaded 1” steerer tube diameter? To be used for a 180mm head tube length.
No, sorry!

need a replacement fork for 537L raven please advise suitable options many thanks
By
24 Jun 2019
Any of these will work - https://www.sjscycles.co.uk/search/?term=48mm%20raven%20tour
For more info - http://backup-pc/intranet/pdfFiles/Thecorrectforkforourbikes.pdf

Thanks - 25/06/19
