Wolf Tooth Boostinator DR for DT Swiss Star Ratchet Rear

£49.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Boostinator kits allow non-boost wheels to be mounted in Boost spacing frames and forks.

While incremental, the benefits of the 'Boost' 15 x 110mm front and 12 x 148mm rear axle standards are clear: better clearance for fatter tyres and rims and reduced dish for stiffer, stronger wheels. The big bummer? Taking full advantage requires not only a new frame and fork, but new wheels as well.

In response, we have developed the Boostinator. When paired with compatible 15 x 100mm or 12 x 142mm hubs, Boostinator kits allow existing wheels to be mounted in Boost-standard frames and forks. Disc and drivetrain positions are maintained and, thanks to a quick re-dish, spoke bracing angles are improved.

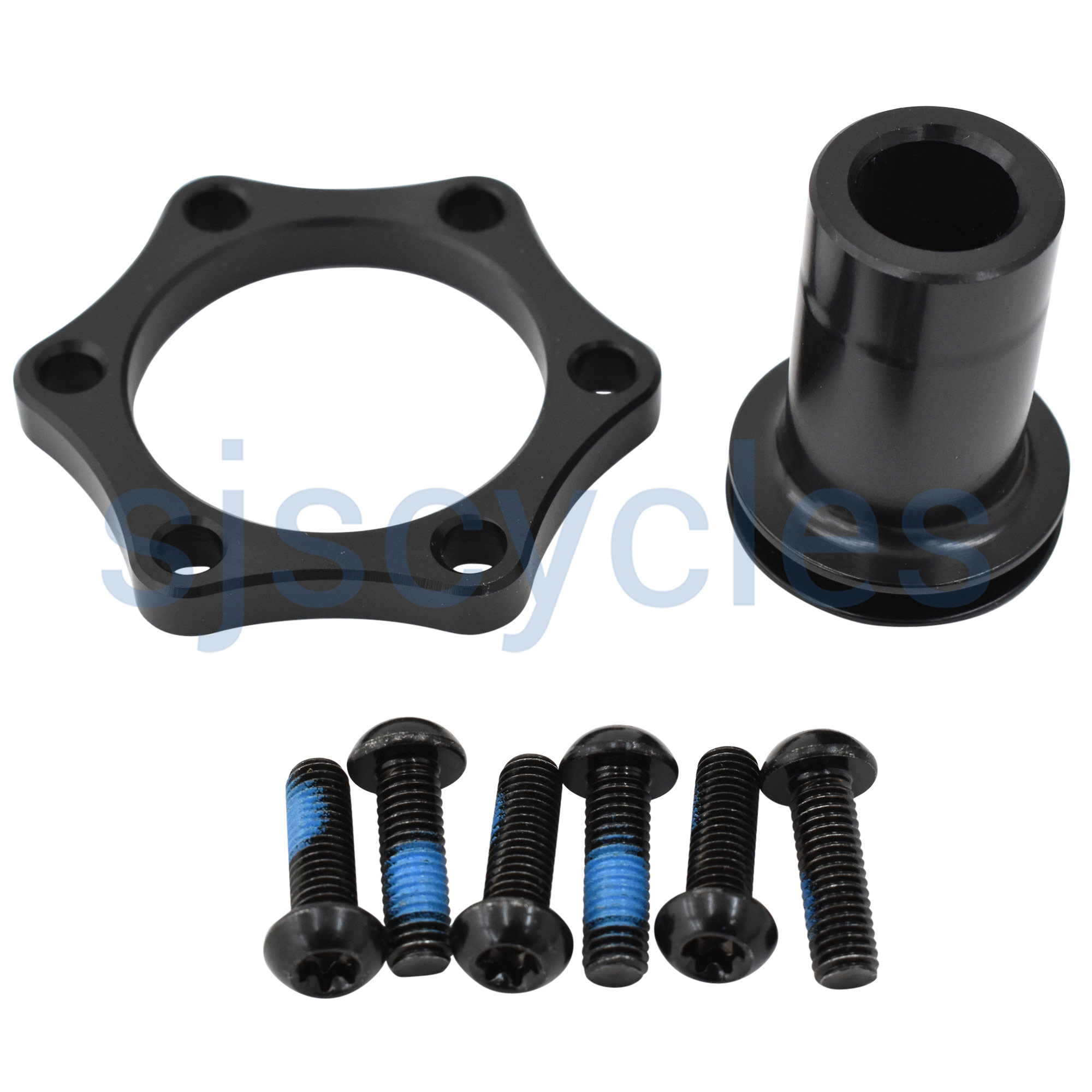

Boostinator kits consist of a specially-designed axle end cap and -in the case of rear kits- a precision-machined rotor spacer with a set of six high-strength bolts. In keeping with Boost specifications, the disc and cassette are shifted outboard, allowing brakes and derailleurs to function as designed.

- Rear Boostinators require both a re-dish and rotor spacer
- Rear Boostinator kits are not approved for rotors larger than 183mm
- Hub spacing is 142mm rear and the Boostinator make them 148mm respectively
- Compatible with only 6-bolt rear wheels (there is no way to space centerlock rotors over 6mm)
- NOT recommended (or safe) for non-symmetric lacing like the 2:1 lacing like the 2:1 lacing found on some of Industry Nine's wheels
- NOTE: You will need to re-dish your wheel after installing any Boostinator

Boostinator DR:
- The Boostinator DR is compatible with DT-Swiss 12 x 142mm Star Ratchet (240- and 350-series) rear hubs with 6-bolt (IS) rotor mounts
- Centerlock hubs are not supported
- 180- and 190-series hubs are centerlock only
- The Boostinator DR is also compatible with some complete wheels from DT Swiss, Roval (Specialized), Giant, Syncros (Scott), and others that use DT's Star Ratchet internals
- Remove the disc side end cap. Bearing size 6802 (15 x 24)

Compatible Rear Wheels:
- XR 1501 Spline One
- XM 1501 Spline One
- X 1700 Spline Two
- M 1700 Spline Two
- FR 1950 Classic
- EX 1501 Spline One (2016 and older)
- E 1700 Spline Two

Tech Specs:
- Weight: 18g
