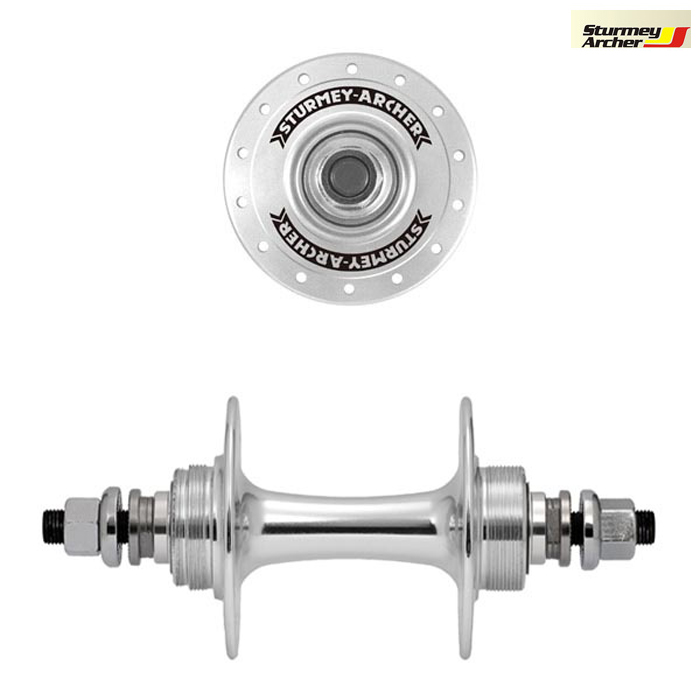

Sturmey Archer HBT30-R Fixed / Free Rear Hub - Silver - 32 Hole

Customer Reviews (1)
5 / 5| Write your review
£39.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Hub Shell Material - 6061 Aluminum
Axle Diameter - 10mm
Axle Length - 175mm
Axle Material - Chromoly
Over Locknut Dimension - 130mm
Spoke Holes - 32
Pitch Circle Diameter - 61.5mm
Flange Width - 66.6mm
Centre to Flange Right - 33.3mm
Centre to Flange Left - 33.3mm

Weight - 343g
Product Reviews (1)
Questions & Answers (4) Q & A
Download File
Product Reviews (1)
Overall Product Rating 5 / 5
Nice Hub
By Peter
01 Jul 2017
5 / 5
I recommend this product
ProsLooks, smooth
Good looking hub, nice finish, spins very smoothly
Questions & Answers (4)
What chainline does the rear hub produce? Thanks in advance.
21 Feb 2021
Thank you for your enquiry, chainline with this hub will be 42mm.

WD 22/02/21
Do you have a rear hub or rear wheel that fits the below criteria?
21 Feb 2020
Single speed free wheel
120mm O.L.D.
6 bolt disc

All of the above on a 700c rim with internal width (17 to 20mm)

I know it's a big ask!
Unfortunately we have nothing, very hard pushed to find 120mm - barely any frames have disc fittings sub 135mm!

Thanks - 24/02/20
assuming we can swap spacers, etc. what's the smallest OLD possible for this hub?
16 Oct 2019
I'm trying to source a hub with 106-110 OLD
The OLD for this hub is 130mm, unfortunately we do not have any rear hubs that can be used on such a narrower measurement that you require.
Regards. 17/10/19
Can this hub be spaced to 135mm OLD
07 Aug 2017
yes but you'd probably need to add 2.5mm to each side
