Eccentric Bottom Bracket Insert Taiwanese - Fits Thorn Voyager / Explorer tandems etc

Customer Reviews (2)
3.5 / 5| Write your review
£29.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Product Reviews (2)
Questions & Answers (5) Q & A

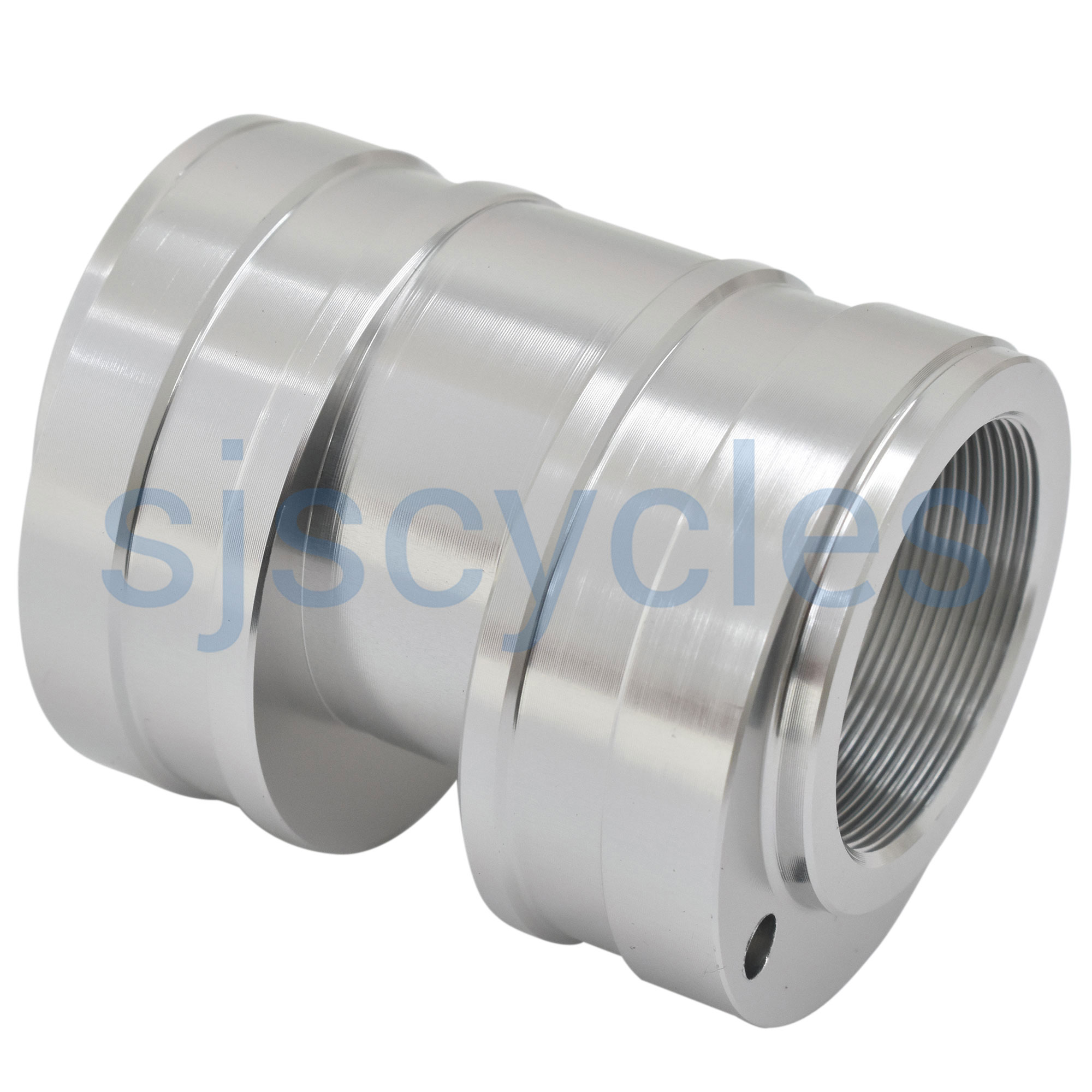

54.2mm diameter to fit 54.5mm shells
61mm long with 68mm shoulders for standard bottom brackets - Fits Thorn Voyager / Explorer / Me n u2 / Trident and many other non UK built tandems check dimensions before ordering.
Download File
Product Reviews (2)
Overall Product Rating 3.5 / 5
Eccentric Bottom Bracket
26 Jun 2011
4 / 5
I recommend this product
ProsIts the BB youve been searching for. Cheap
A perfect fit for my schwinn sierra frame. Obviously made for the foreign mass produced tandem frames rather than bespoke british ones. Sturdy, not creaky and no complaints.
Bottom Bracket Eccentric
11 Apr 2011
3 / 5
Cons... but only after a bit of fettling
ProsDoes the job...
Nicely machined part, but was fractionally too large diameter to fit my Thorn, no matter how hard I tried to drift it. Ended up having to knock it out and reduce it down a bit before it would go. No
Questions & Answers (5)
can fit gpx BB
21 Jun 2019

Just to be sure. If I put this into my newly build tandem, I can fit any BB system like gpx and so on?

Thanks in advance.
Kind regards
the Netherlands
Yes! most thread in BBs will go in fine.

Thanks - 21/06/19
Is It Two Pieces Or One Block?
10 Oct 2016
Hi, I need to fit an EBB in an old tandem frame.
Problem is that the BB shell is 50.6 mm width.
If it your EBB is composed of two blocks, is it possible to "cut" the mid-section to make it narrow?
Thanks a lot

Unfortunately this is one solid block and we would not recommend that sort of modification to it.

Charge Duster Ss
07 Sep 2016
Do you know if this will fit a charge Duster Single Speed?

Unfortunately we have never had a Charge Duster here so we have no idea what the bottom bracket specification on your bike is I'm afraid. All we can recommend is looking at the dimensions of this item and comparing them to your current eccentric.

Does This Fit A Thorn Adventure (2001 Vintage) With Deraileur Gears?
21 May 2016

This would indeed be the correct replacement eccentric insert for your Thorn Adventure.

Will This Fit A 2009 Rockymountain Hammer 29
09 Nov 2015
HI i am looking for a EEB sleeve for my 2009 Rocky Mountain Hammer, here is the specs

Unfortunately the specification for the bike you have provided does not give any information on the bottom bracket dimensions and as we have never sold Rocky Mountain bikes or even serviced one of these bikes we're going to have no way of knowing if this Eccentric bottom bracket shell insert will be suitable for your bike or not I'm afraid. The dimensions for this insert are listed within our description so we'd recommend checking those against the bottom bracket shell in your bike first. If they don't match up, all we can recommend is contacting "Greenover Sports" who are the current UK distributor for Rocky Mountain and they may be able to source a replacement but for a bike of that age there is no guarantee.
