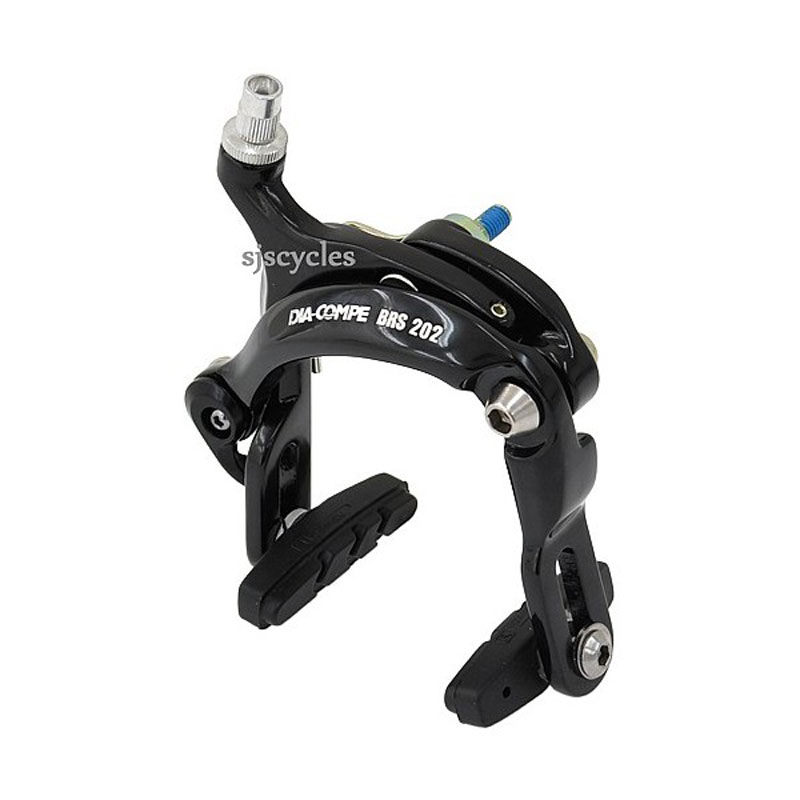

Dia-Compe BRS202 Caliper Brake 57-75 mm Drop

Customer Reviews (2)
4.5 / 5| Write your review
£34.99
was
Colour / Type
£34.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Details
- Available in silver or black
- Deeper than normal road drops at 57-75 mm
- Dual pivot
- Cold forged alloy
- Superlight
- Indexed QR function with cartridge pads
Product Reviews (2)
Questions & Answers (8) Q & A
Specification
Downloads
Download File
Product Reviews (2)
Overall Product Rating 4.5 / 5
Spot on
By Duncan Wood
22 Mar 2018
5 / 5
I recommend this product
Did a job no others could manage
By Colin
23 Jun 2017
4 / 5
I recommend this product
Used retro bicycle restoration where 700c wheels are fitted and a longer reach is needed.. good quality part.. easy fit.. look better finished than two eqivalent
Questions & Answers (8)
Brake pad replacement
By
18 Apr 2024
What pads are best for replacement when the ones supplied wear out?
I would use item 62298, this would allow for cheaper inserts to be used in the future. SK 19/04/24
Can I use these with 650b wheels switching over from 700 Road bike wheels, with 33mm tyres?
By
13 Apr 2024
No, the mounting point will not be in the correct place, long drop brakes allow the use of mud guards and larger tyres with calliper brakes.
What the maximum width of a mudguard can the brs202 take?
By
06 Jun 2022
An estimate would be approx 50mm, depending on tire and wheel.

JK 08.06.22
Which would you say is a better overall caliper, these or Tektros
By
17 Oct 2020
Both are very good, the pad compound and condition of the rim makes the biggest difference.

JK 21.10.20
Is the dia compe brs202 a more powerful and durable brake that the tektro r559?
By
08 Mar 2019
The power is going to be similar, the R559 has upgraded pads, the BRS202 is lighter!

thanks - 08/03/19
does this come with the mounting fittings for the bolts?
By
05 Mar 2018
ie the allen key nuts used to secure the brakes to the frame.

Mqany thanks,

Richard
Hi there,

Yes these come with the fittings.

Thanks
Can I Use This With Gilles Berthoud Fenders?
By
31 May 2017
Witch dimension Tyres will work with these brakes.
I have i singelspeed frame / fork with Caliper mounts.
Will 35 mm tyres (700c) For exempel Continental cyclocross speed fit?
Might even wider tyres fit?
And if so is it even possible to fit a pair of Gilles Berthoud fenders?

Sincerely,
/Mats
Hello,

Yes your frame will fit these brakes. We would recommend that the largest tyres to use would be 32mm slick tyres. Unfortunately the mudguards you have mentioned are too wide.

Thanks.
Hello, I Have A 1970S Dawes Galaxy Frame
By
13 Dec 2014
now running with 700 cc wheels/tyres. Old Weinman centre pulls need replacing,drop seems to by 75mm. will these work ie fit to the forks?
thanks
Hi,

I can't say for definite as I'm not familiar with that bike, but most bikes of that age used external nutted fitting brakes rather than these Dia-Compe brakes which uses a recessed nut, if your forks are still the original ones then it is unlikely to be able to accept a recessed nut and the bolt within the brakes will not be long enough to fit a normal nut. You could either use these brakes and fit longer a longer bolt (SJSC part number 24266) or use a set of brakes that come with a nut fitting as standard SJSC part number 24459.

Thanks.
