Shimano BR-RS505 Caliper Fixing Bolt C - 20mm Frame - Y8N208010
£5.99
was
£5.99
was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Details

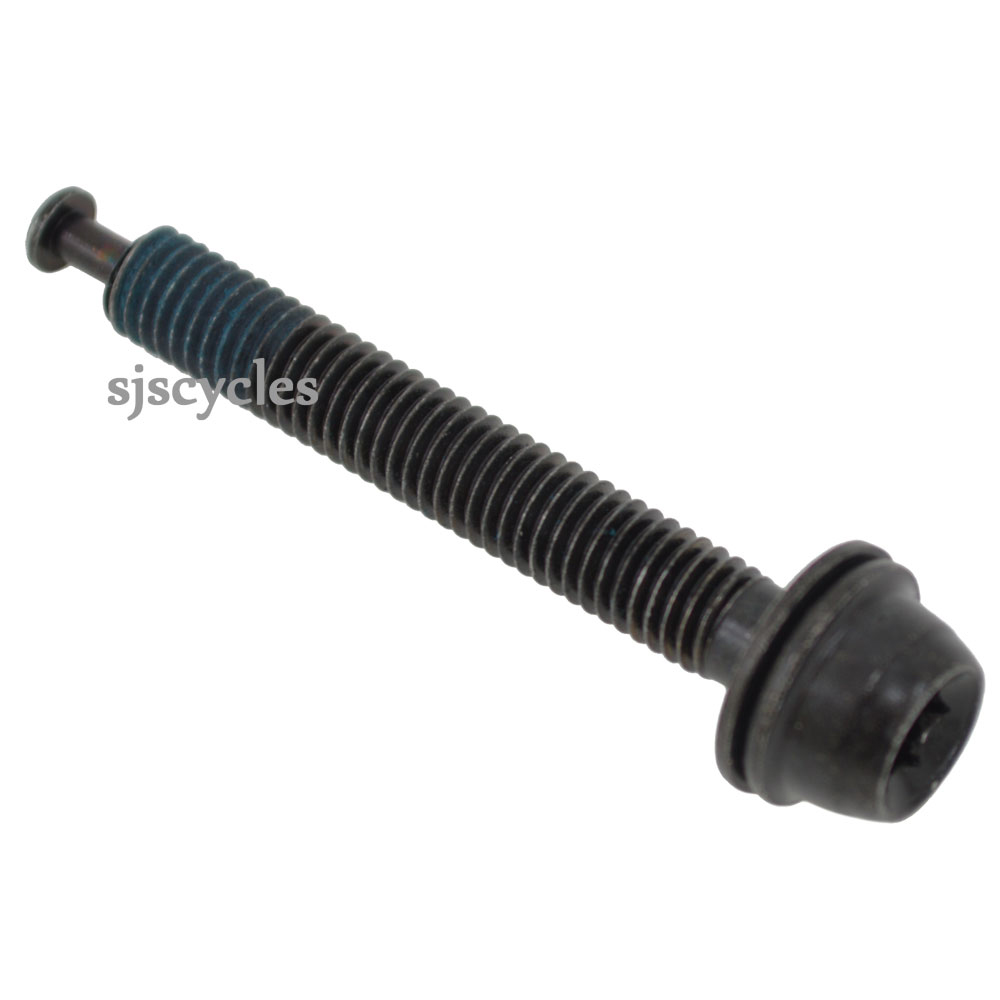

For use with Shimano BR-RS505 disc brake calipers.
33mm bolt for use with 20mm Rear mount thickness.
This Caliper Fixing Bolt C can also be used on the following brakes:
- Shimano Ultegra BR-R8170
- Shimano Ultegra BR-R8070
- Shimano 105 BR-R7070
- Shimano Tiagra BR-4770
- Shimano Deore XT BR-M8110
- Shimano SLX BR-M7110
- Shimano GRX BR-RX810
- Shimano GRX BR-RX400
- Shimano BR-RS805
- Shimano BR-RS405
- Shimano BR-RS305
- Shimano BR-UR300
- Shimano Metrea BR-U5000
These are an "A" match which indicates that the parts are the same in materials, appearance, finish & size etc.
If the correct Caliper Fixing Bolt C is unavailable you can also use the bolt from the following brakes:
- Shimano Dura-Ace BR-R9170
- Shimano XTR BR-M9110
These are a "B" match which indicates that the parts are usable, but differ in materials, appearance, finish & size etc.
Genuine Shimano replacement part.
33mm bolt for use with 20mm Rear mount thickness.
This Caliper Fixing Bolt C can also be used on the following brakes:
- Shimano Ultegra BR-R8170
- Shimano Ultegra BR-R8070
- Shimano 105 BR-R7070
- Shimano Tiagra BR-4770
- Shimano Deore XT BR-M8110
- Shimano SLX BR-M7110
- Shimano GRX BR-RX810
- Shimano GRX BR-RX400
- Shimano BR-RS805
- Shimano BR-RS405
- Shimano BR-RS305
- Shimano BR-UR300
- Shimano Metrea BR-U5000
These are an "A" match which indicates that the parts are the same in materials, appearance, finish & size etc.
If the correct Caliper Fixing Bolt C is unavailable you can also use the bolt from the following brakes:
- Shimano Dura-Ace BR-R9170
- Shimano XTR BR-M9110
These are a "B" match which indicates that the parts are usable, but differ in materials, appearance, finish & size etc.
Genuine Shimano replacement part.
Specification
Downloads
Download File
Questions & Answers (6)
Are there special bolts for front caliper fixing to fork?
By Bernard Corrigan
20 Apr 2021
For Ultegra BR-8070.
SJS Customer Service:
Yes- you will need to use a specific fixing bolt. Fixing bolt C is for the rear caliper only.
Thanks 21.04.21
Thanks 21.04.21
Hello, to confirm, can these bolts Y-8N2 08010 Be used on the dura ace rear disc brakes
By LMG
20 Jan 2021
SJS Customer Service:
Depends on which exact brakes are in question- what's the BR code on your brake caliper?
Thanks- 20.01.21
Thanks- 20.01.21
Can't I use regular brake caliper torx bolt instead of these shimano parts?
By EMRE ACIKARAOGLU
02 Sep 2019
I can't see why I would need these special type of bolts for fixing a flat mount rear caliper. I currently use Sram Rival and the rear caliper bolts are m6*22 from my local hardware store. Won't they work for shimano as well?
SJS Customer Service:
We would recommend that you use these parts for fixing a flat-mount rear calliper to your frame.
Cannondale SuperX
By Craig
23 Apr 2018
Hi there- apologies if this is asking the obvious but just checking. I've measured the chain stay at 2cm and the total bolt length is 45mm inc the non threaded section for the clip. Is this the correct bolt?
Cheers,
Craig
Cheers,
Craig
SJS Customer Service:
Hi there,
The threaded section is 26mm, the overall is 39.5mm
Thanks
The threaded section is 26mm, the overall is 39.5mm
Thanks
Washers For R160 Adaptor
By Tom Wodehouse
29 Jun 2017
Hi
Shimano states that when using these to fit the R160 adaptor you should also use these washers - Y8NU02000
Do you stock these or do they come with the bolts or with the adaptor?
Thanks
Shimano states that when using these to fit the R160 adaptor you should also use these washers - Y8NU02000
Do you stock these or do they come with the bolts or with the adaptor?
Thanks
SJS Customer Service:
Hi,
We do stock these washers they're SJSC part 45311.
Thanks.
We do stock these washers they're SJSC part 45311.
Thanks.
Does Your Product Number 40181 Come As A Pair Or Ate They £5.99 Each Pls.
By Rich Mouland
30 Jul 2016
Need two for a new build.
SJS Customer Service:
Hi,
These bolts are sold individually, so you'll need to purchase two for a pair.
Thanks.
These bolts are sold individually, so you'll need to purchase two for a pair.
Thanks.
