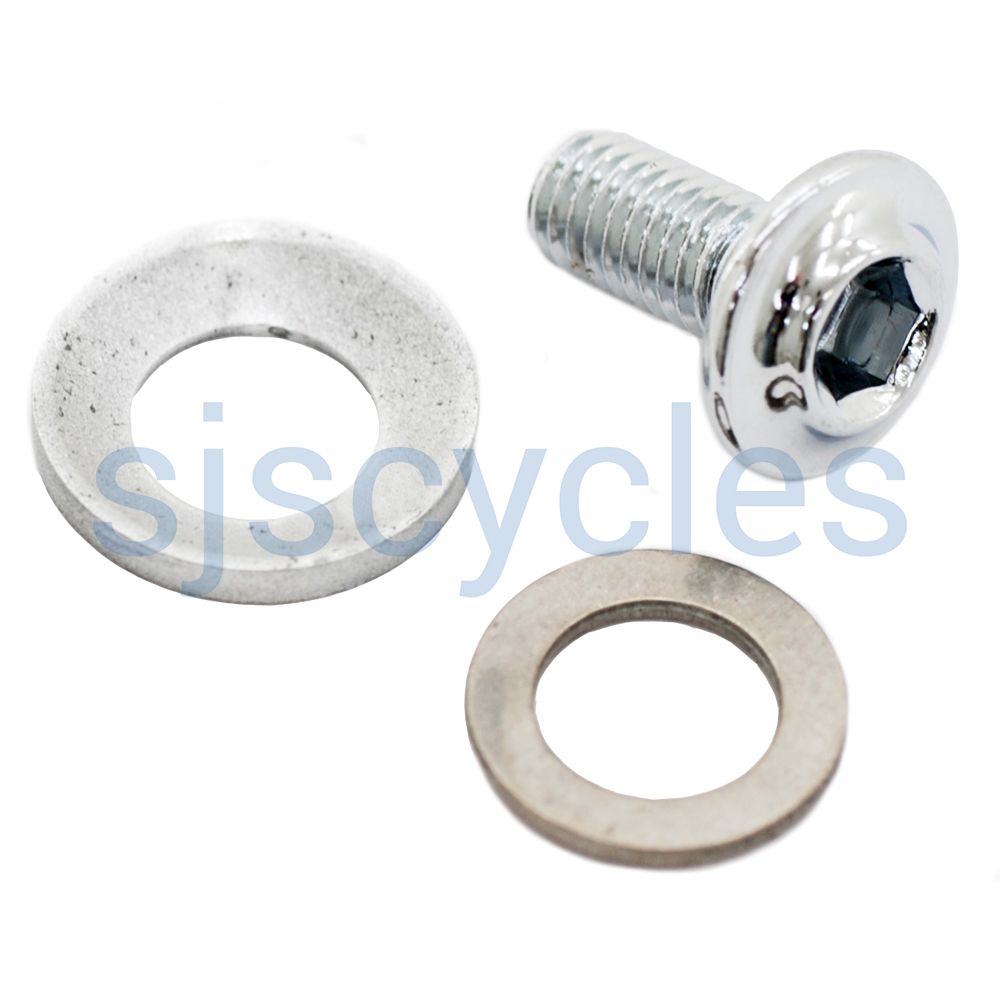

Shimano Ultegra BR-6700 Shoe Fixing Bolt Unit - M5 x 11.2mm - Y8G698090

£2.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
For use with Shimano Ultegra BR-6700 caliper brakes.

This Shoe Fixing Bolt Unit can also be used on the following caliper brakes:

- Shimano Dura-Ace BR-7900
- Shimano Ultegra BR-R8110-F
- Shimano Ultegra BR-R8110-RS
- Shimano Ultegra BR-R8100
- Shimano Ultegra BR-R8010
- Shimano Ultegra BR-R8010-RS
- Shimano Ultegra BR-R8000
- Shimano Ultegra BR-6810
- Shimano Ultegra BR-6810-RS
- Shimano Ultegra BR-6800
- Shimano 105 BR-R7010
- Shimano 105 BR-R7010-RS
- Shimano 105 BR-R7000
- Shimano 105 BR-5810
- Shimano 105 BR-5810-RS
- Shimano 105 BR-5800
- Shimano 105 BR-5710
- Shimano 105 BR-5700
- Shimano BR-RS811-R

These are an "A" match which indicates that the parts are the same in materials, appearance, finish & size etc.

If the correct Shoe Fixing Bolt Unit is unavailable you can also use the bolt unit from the following caliper brakes:

- Shimano Dura-Ace BR-R9110-RS
- Shimano Dura-Ace BR-9010
- Shimano Dura-Ace BR-7800
- Shimano Ultegra BR-6600
- Shimano 105 BR-5600

These are a "B" match which indicates that the parts are usable, but differ in materials, appearance, finish & size etc.

Genuine Shimano replacement part.
Product Reviews (0)
Questions & Answers (3) Q & A
Download File
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (3)
Is this bolt completable with sram brake shoe holder?
12 Nov 2020
I , does this bolt fit with sram brake shoe holders?
This is design for use with Shimano products only.

JK 12.11.20
mounting brake shoe fixing bolt unit
08 Jan 2018
I bought this set from you but I'm not sure how to install the washer on a brake shoe. Should the concave side of it be placed on the brake shoe and flat side on the inside of a caliper leg?
Hi there.

As described, the concave side facing the back of the pad housing, the flat side against the inside of the caliper, then the washer sits below the bolt.

Washer Dimensions In Mm
24 Oct 2016
Hi, Please Can You Tell Me The Outer And Inner Diameter Of The Washer Supplied With These. Many Thanks.

The supplied washer has an internal diameter of 7mm and an external diameter of 12mm.
