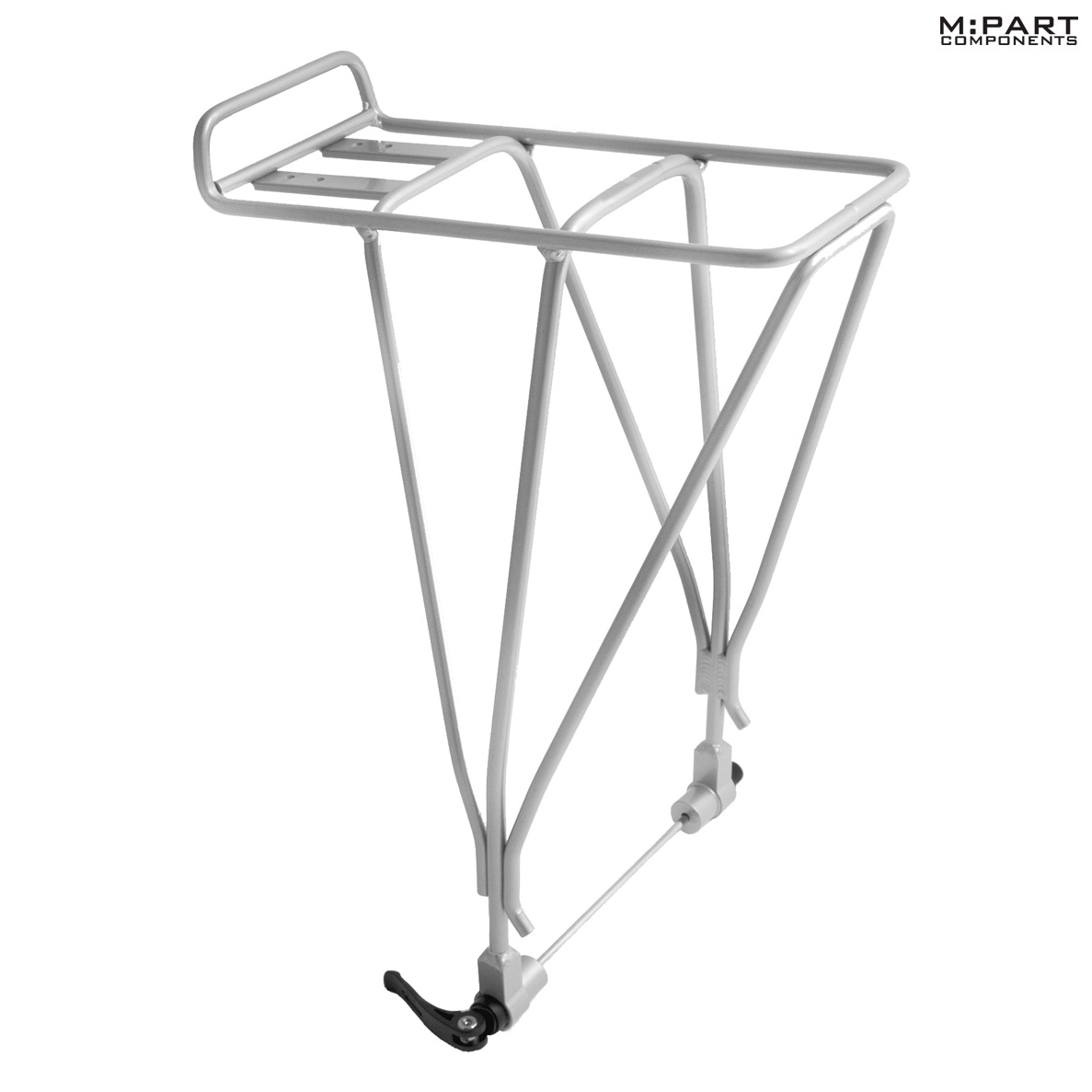

M:Part AX3D Disc Rear Rack with QR

£47.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
- A disc compatible high strength rack designed for heavy duty touring
- Suitable for all wheel sizes up to 29"
- This rack will clear disc brake calipers and is supplied with it's own extra long quick release skewer
- Tough anodised finish to resist corrosion
- Constructed from aircraft quality aluminium
- One size fits nearly all frames
- Tough anodised finish to resist corrosion
- Supplied with own QR skewer for fitting
- Weight including fittings: 910g
Product Reviews (0)
Questions & Answers (7) Q & A
Download File
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (7)
Can I use this with Ortlieb panniers?
23 Mar 2023
Thank you for your enquiry, yes this rack would be compatible with Ortlieb panniers. I hope this helps.
Kind Regards. JP 24/03/23
What diameter is the tubing?
03 Oct 2020
I want to use it with the Ortlieb QL2.1 mounting system. They make different clips for different racks.
Hello, As we have measured the OD of the tubing is approx 8mm.

Hope this helps,

JK 05.10.20
How wide is the Rack. I have a child seat that needs a rack not over 140mm wide.
29 Jun 2020
Hello, this rack is 125 MM wide.
Hi, what length are the bottom mounting lugs. I need 17 mm clearance each side. Many thanks.
13 Nov 2019
Hi there,

The mounting points are approximately 17mm long.

What is the Dimension between bottom mounting lugs
10 Nov 2019
Hi, they are spaced at 150mm. Thanks 11/11/2019
Can this rack be attached to regular eyelets?
22 Sep 2017

This rack has only been designed with QR fitting in mind, but in theory with a long enough set of bolts it could be made to fit directly to the eyelets on a frame.

Does The Ax3D Disc Rear Rack With Qr Come With Top Fixing Brackets?
02 May 2017
If not where can I buy them?

The upper fixing brackets are included with the rack they have just not been photographed with it.
