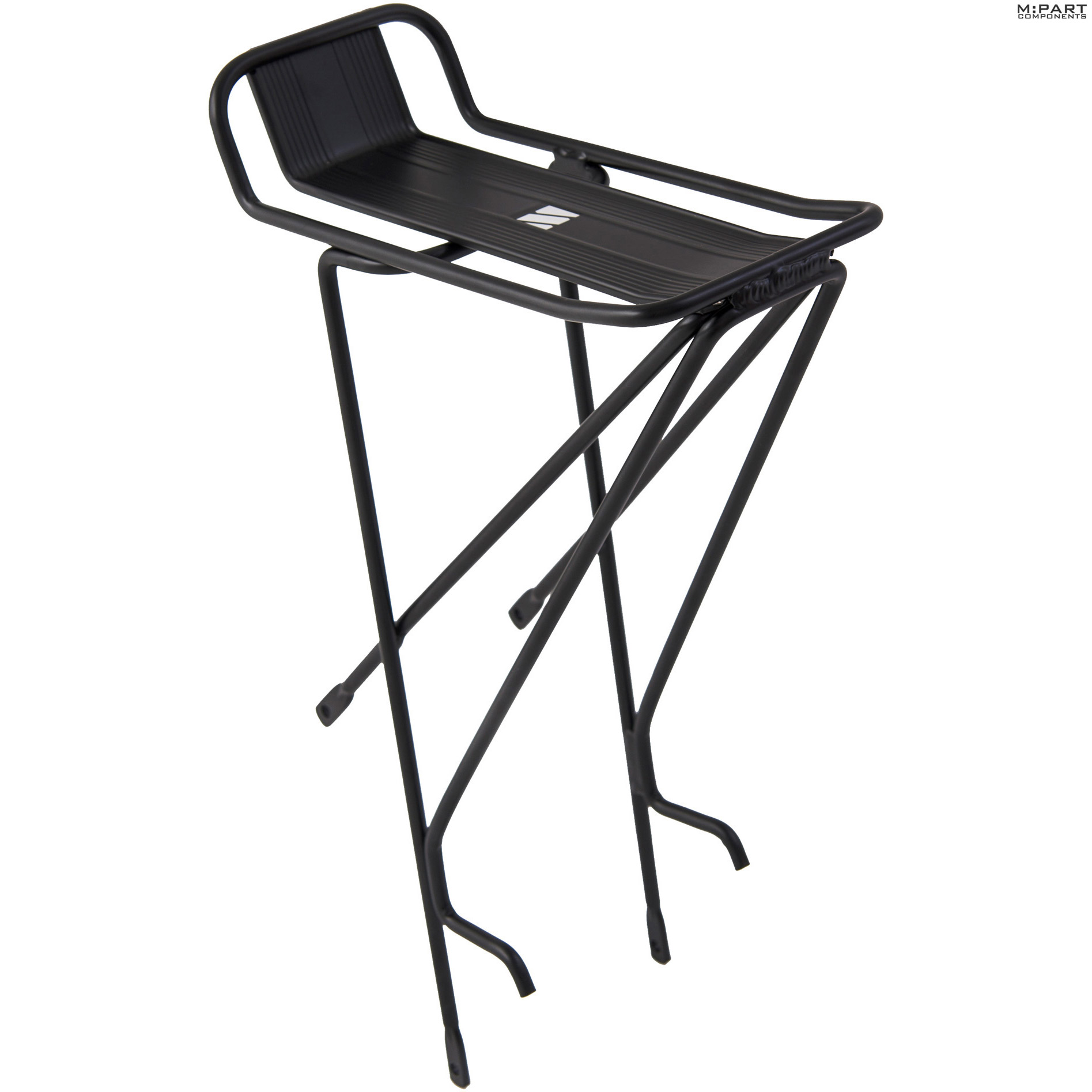

M:Part FMP Mountain Front Rack

Customer Reviews (1)
3 / 5| Write your review
£35.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
- Mountain bike front rack suitable for 26, 27.5 and 29" wheels
- Triangulated bracing for ultimate stability
- Centre platform provides protection from mud and water
- Tough anodised finish to resist corrosion
- Alloy construction.
- Weight: 450g
- Max load: 10Kg

Dimensions; 130mm X 260mm
Product Reviews (1)
Questions & Answers (16) Q & A
Download File
Product Reviews (1)
Overall Product Rating 3 / 5
Simple Rack
By Ciaran Mooney
25 Mar 2017
3 / 5
I recommend this product
A simply rack. All the fittings necessary to fit it to my Ridgeback were included. Had to fettle my front mud guard to fit the rack but this is not the racks fault.

Time will tell about the durability, but it doesn't look like this will be an issue.
Questions & Answers (16)
Will this fit my Thorn Sherpa circa 2007?
13 Nov 2021
For any information or advice on any of Thorns bikes, frames or forks please contact out dedicated Thorn bikes sales team either on 01278 441505 or [email protected] and they'll be able to provide you with all of the information you need.
Will this rack fit a 26” surley disc trucker fork?
06 Jun 2021
No, this part will not suit.

JK 07.06.21
Tyre clearance.
03 Mar 2021
I want to fit the rack to a Genesis Vagabond. It has 29? wheels with 2.25 tyres and has eyelets at the dropout, mid fork and crown.
Thank you for your enquiry, the rack internally is 115mm.

WD 04/03/21
Can this rack be used with Surly cross check forks
28 May 2020
We do not think so because the dropout mount is on the back of the fork, had it been on the front we think this would have been suitable.

Thanks - 29/05/20
Looking fro a small part
03 Jan 2020
Do you sell separately the small part that bridges the frame to the front rack? Mine snapped after a few years.

Thank you.
Not the M part one, SJS Cycles part number : 34164 should do the job though!

Thanks 03/01/20
Can I use with Cannondale Quick CX1?
27 Apr 2019
Cannondale Quick CX One 2016 model has 700c Headshok fork with bolts halfway down the legs (lowrider mounts?) and bolt holes on the dropouts (the chunky legs have quite an overhang) - will this fit?
Hi, sorry we have no way of confirming this rack will fit your 700c Headshok fork. Thanks 29/04/2019
Would these fit a 1940 Robin Hood ?
24 Feb 2019
Would these fit a vintage 3 gear British bike (Robin Hood) , with roller brakes/rod brakes ?
We would need to see the bike in person to assess fitting, a trip to your local bike shop may be helpful.

Thanks - 25/02/19
Can I use this if fork has no eyelets midway?
30 Apr 2018
The bike is a hybrid with 28 x 1 3/8 tyres and only eyelets close to the front axle. This appears to need eyelets midway down the fork?
Hi there,

Yes you will need mid level eyelets for fitting, if you have none you can use - SJS Cycles part number : 21526

Will Ortlieb Spert Packer Classic front panniers fit on this rack? Thanks.
04 Mar 2018
Hi there,

Yes these should fit fine.

25 Jun 2017
what are the dimensions of this rack?

The height of this rack is 430mm, The length from front to back is 274mm and the width of the rack is 130mm.

What Is The Distance From The Lower To Upper Mounting Hole?
02 Jan 2017
I want to use it with a Salsa Firestarter steel fork

This distance between the upper and lower mounting points is 165mm.

Could You Please Tell Me The Measurement Between The Main Mounting Legs On This Rack?
07 Nov 2016

When relaxed the lower mounting points are 115mm apart, there is plenty of give in the legs to allow for a slightly smaller or larger spacing.

Will This Work With A 700C Wheel On A Classical Ladies' Bike (Make Probike)?
26 Aug 2016
Will this work with a 700c wheel on a classical ladies' bike.

This will indeed be fine for use with a 700C wheel, how well it will fit on your bike will depend competently on the fittings on your forks.

Wheel Clearance
04 Aug 2016
Can you please tell me what the measurement is for wheel clearance from the mounting bolt holes to the underside of the platform.

The distance from the centre of the mounting hole to the underside of the rack is 385mm.

Hello! Will This Rack Work With The Thorn Audax Fork?
21 Feb 2015

Although it would only require a small amount of bending to get this rack to fit to the Audax forks, the Thorn bikes team would not recommend fitting it to our forks. This is because these forks have only been designed to be used with low riders and are not designed to take the weight of luggage above the wheel.

Material And Weight Limit?
09 Sep 2014

This is an Alloy rack and has a recommended carrying capacity of 10Kg.
