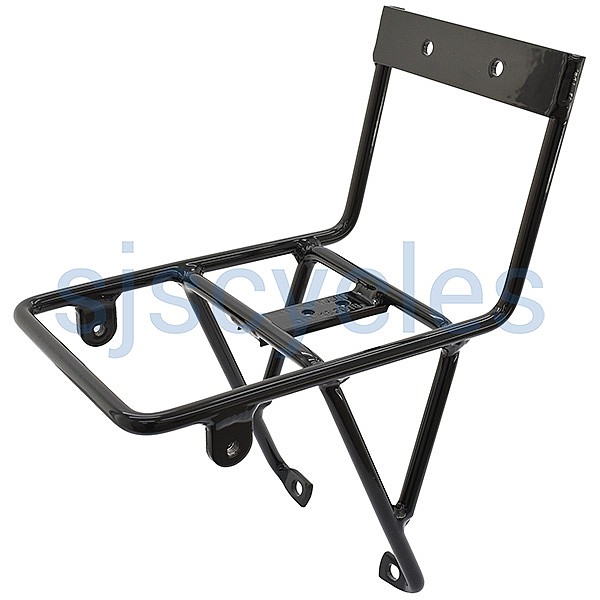

Jtek Alloy Front Carrier - Cantilever Boss Mounting - Black
£24.99
was
£24.99
was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Details
Includes dynamo headlight bosses to mount on left or right sides.
We recommend using LONG (25mm) Shimano Link Fixing bolts to secure the rack to your fork brake boss.
Use SJSC code: 37181 for m6 x 25mm Link fixing bolts.
Dimensions:
- 165mm Front to back on surface rack rails (overall length)
- 130mm Cantilever mounting bolt to surface rack rails
- 250mm Overall height approx. from cantilever mountings to top of rack.
Fits between 70mm and 80mm cantilever bolt centres plus a little extra adjustment with bending if needed.
MAX LOAD: 1500g
We recommend using LONG (25mm) Shimano Link Fixing bolts to secure the rack to your fork brake boss.
Use SJSC code: 37181 for m6 x 25mm Link fixing bolts.
Dimensions:
- 165mm Front to back on surface rack rails (overall length)
- 130mm Cantilever mounting bolt to surface rack rails
- 250mm Overall height approx. from cantilever mountings to top of rack.
Fits between 70mm and 80mm cantilever bolt centres plus a little extra adjustment with bending if needed.
MAX LOAD: 1500g
Specification
Downloads
Download File
Questions & Answers (7)
Checking rack dimensions?
By Laura
17 Mar 2024
Could you confirm the dimension ‘overall height’ please. Is the 250mm from Cantilever bosses to ‘top of rack’ to the loading area of the rack, or the maximum height from cantilever boss to the top of the ‘up stand’ which sits nearest the steerer tube. Thanks
SJS Customer Service:
The rack is 250mm in height total, from the bosses to the deck is 130mm from the bosses and 165mm long. SK 19/03/24
What bag would work best with this rack?
By Philip
10 Jan 2023
SJS Customer Service:
This rack can be used to mount either baskets or it can be used to hold traditional bar bags, or even allow the fitting of Carradice Saddle bag to the front of the bike. SK 12/01/22
What Metal is this made from
By Matt W
04 Jan 2022
It says "alloy", but is this made from steel alloy, or aluminium?
SJS Customer Service:
Aluminum Alloy
JK 04.01.21
JK 04.01.21
How many bolts are needed ?
By Geraldine Withers
28 Oct 2021
SJS Customer Service:
2 extra-long brake mounting bolts & 1 bolt to suit the threading in your fork crown.
JK 28.10.21
JK 28.10.21
Can this rack be installed in front of a fork crown mount cable hanger for cantilevers?
By Mark
05 Dec 2020
Just wanted to check whether a cable hanger could be fitted behind a hanger - including e.g. whether an extra coupling bolt could be used to place the rack sufficiently forward of the hanger? Many thanks.
SJS Customer Service:
We have not fitted it in this configuration so we cannot confirm
JK 14.12.20
JK 14.12.20
What is the maximum load for this rack please
By Tim
02 Aug 2020
SJS Customer Service:
- Max weight advised is 5KG on smooth sealed roads, much less for rough tracks RT 03/08/2020
Measurements
By muse kidd
09 Apr 2020
Would it be possible to get the measurements of this rack? I'm curious too, if it will work with V-brake calipers?
SJS Customer Service:
Hi, the rack top is 160mm x 110mm. If your V-Brakes are shorter than 130mm then yes. Thanks
