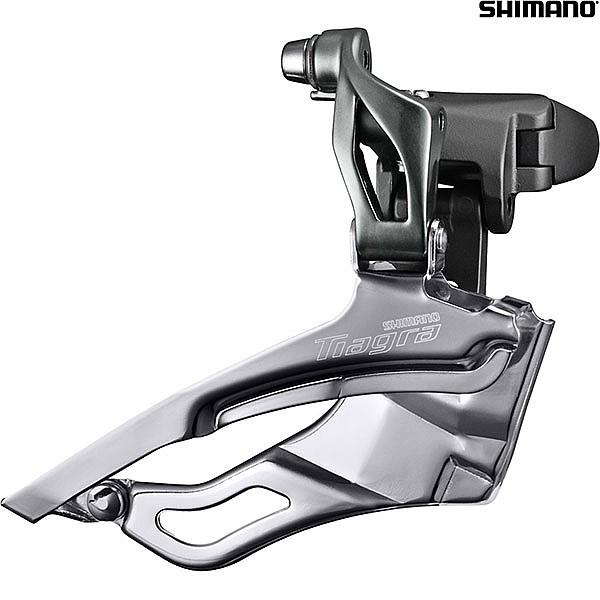

Shimano Tiagra FD-4703 10 Speed Triple Front Derailleur - 28.6/31.8mm

Be the first to review this product
£36.99
was
View supersize image
£36.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Details
- 10-speed compatible Tiagra triple front derailleur delivers pro features to sport-level road riders
- Extra wide pivot link increases rigidity while reducing flex for improved shifting response
- Aluminium links and band to save weight and increase rigidity
- For road cycles equipped with 10-speed drivetrains
- Multi clamp band to fit 28.6 and 31.8 mm frame tubes
- Plated steel chain cage
- Maximum capacity of 20 teeth, for outer rings 50 tooth
Product Reviews (0)
Questions & Answers (3) Q & A
Specification
Downloads
Download File
Associated Components
Part Number
Description
Availability

Y5RH98010
Cable Fixing Bolt Unit
Discontinued
Y5BG07900
Clamp Bolt (M5 x 17.5)
Discontinued
Y59L19100
Clamp Bolt (M5 x 17.5) for SM-AD67
Discontinued
Y5JD98020
Adapter (2 pcs.) for SM-AD67-MS / Diameter 28.6 mm (1-1/8”)
Discontinued
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (3)
Can this be used for top pull?
By
12 Jan 2024
The derailleur is bottom pull only, however you can re-route the cable pull using item 38171S286, this will take the cable pull from the top and allow it to be used from the bottom. SK 12/01/23
Hi, can I use this FD4730 front changer with my Sora R3000 lever? Thanks.
By
06 Nov 2023
Would it offer any benefits over the Sora 3030 changer?)
This derailleur is designed to be used with narrower 10 speed chains, use with a 9 speed system is not recommended as rubbing or worse may occur. SK 06/11/23
Will this replace a FD 4603 front derailleur.
By
03 Nov 2021
Triple chain set 50 39 30 and 10 speed cassette 11 - 32, the last derailleur did sometimes catch the cage on the extremes of the gearing I don't want any less range. Hope this makes sense
Thank you for your enquiry, a 4703 front mech will only work with Shimano 4700 shifters sorry

WD 04/11/21
