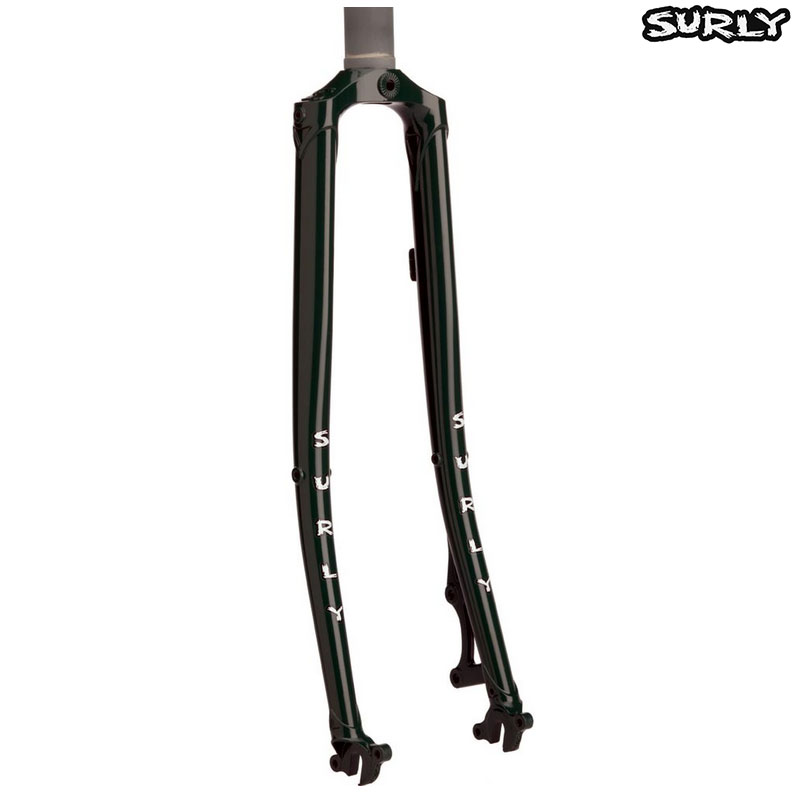

Surly Disc Trucker Fork 1 1/8 Inch Steerer for 700c Wheel - Black

£154.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Sometimes a combination of load, climate and terrain demands a bit more braking performance than a rim brake LHT provides. That's where the Disc Trucker comes in. It's a Long Haul Trucker with 51 mm IS caliper mounts instead of rim brake mounts on the frame and newly redesigned fork.

4130 CroMoly, lugged and brazed. Proprietary sloping crown with threaded eyelets, tapered curved blades with mid-blade rack eyelets, dual dropout eyelets.

- Tyre Clearance: 42 mm with fenders, 45 mm without fenders. (Individual tyre and rim combos affect tyre clearance)
- Rake: 45 mm
- A-C: 390 mm
- Steerer: 350mm
Product Reviews (0)
Questions & Answers (4) Q & A
Download File
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (4)
Spare bolts
08 May 2020

Do you stock the bolts to attach SKS mudguards to the Surly Disc Trucker Frameset? The threads on the ones supplied with the mudguards are too wide.

Hi, sorry we don't have bolt sets for specific frames only the packs supplied by SKS. Thanks
Would this be suitable to use with a 2013 Genesis Croix de Fer?
20 May 2019
I am doing a flatbar conversion on one of my older frames and the existing fork tube is not long enough. Would this be a suitable fork substitute?
This is going to be pretty similar,just double check the a-c, rake etc to make sure your happy that any differences wont be a negative affect on the handling etc.

Thanks - 20/05/19
Do you ship to Ireland or Hong Kong?
06 Oct 2018
I have a surly big dummy fork on the bicycle at the moment. It should swap over no problem?
Yes we ship worldwide! All the information can be found in the basket / customer services page.
As long as the dimensions are suitable it will swap over fine, but the big dummy is a much burlier fork.

Thanks -08/10/18
Any Other Parts Needed?
06 Jul 2017
Hi, replacing my fork on on-one pompino and aside from new fork, front wheel and disc brake components are there any other parts I need to add to the fork to be set up? There is already a headset installed. Not sure if I need to add a crown race or if one comes with the fork? Thanks Eugene

The only thing you would need to think about extra is the crown race, the fork doesn't come with one so you would either need to swap the crown race over from your previous forks or get another crown race that matches your current headset.
