Milian Plablo Mudguard Reinforcement Bar for Folding Bike

Customer Reviews (2)
3.5 / 5| Write your review
£23.99
was
£23.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Details
Product Reviews (2)
Questions & Answers (0) Q & A
Details

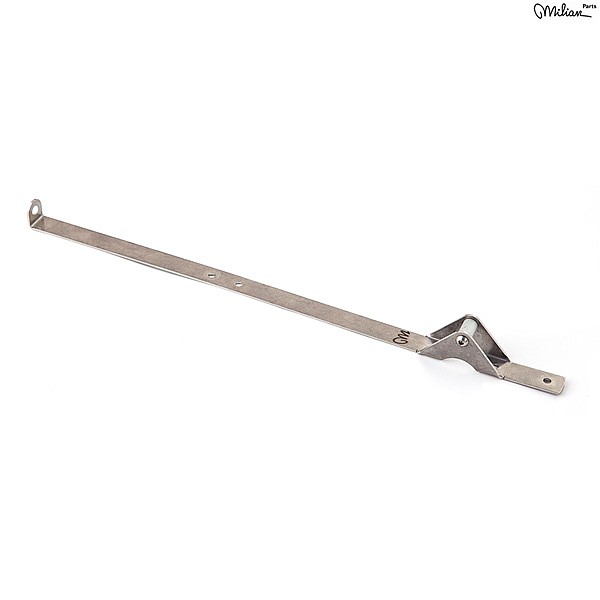

The stainless steel Plablo reinforcement bar is designed to protect and generate a more solid structure to the original mudguard.

- 1.5mm stainless steel
- Compatible with Brompton's L equipment
- Works with the original Brompton mudguard wheel
- Weight: 60g
Specification
Downloads
Download File
Product Reviews (2)
Overall Product Rating 3.5 / 5
Essential
By
07 Jun 2019
4 / 5
I recommend this product
ConsTricky installation, no castor wheel, have to modify a little
ProsStrong result
Great upgrade, having broken a few rear guards over the years. But takes some working out to fit. You need to pre-bend the end a bit to make the last rear holes fit. Also, as there is no castor wheel, I had to drill out the rivet on my existing castor wheel, and then you have to enlarge the hole with a drill again so that it will fit the supplied axle. Also, keep an eye on the order of washers between existing mudguard mount and brake callipers. And remember, the new reinforcement bar tab will replace one of the washers to make everything align properly with holes. All a bit fiddley, but rock solid result.
Fitting Advice
By
21 Aug 2018
3 / 5
I recommend this product
ConsNon-trivial fitting
ProsDurable quality
This seems fairly robust, but requires some fitting.

You will need to remove two rivets (in the mudguard wheel and the mudguard flap). A drill is easiest for this.

It's best to remove the entire back wheel of the Brompton before fitting. I tried to avoid this step and paid for it!

Attach the mudguard and the reinforcement to the frame (via the brake mount) before attaching the reinforcement to the mudguard. Once attached to the mudguard, the tension makes it hard to attach to the brake mount.

The original brompon mudguard wheel does not immediately fit the reinforcement mount. The internet reports that widening the hole in the centre of the wheel to 10mm using a drill solves the problem.

http://www.bicipieghevoli.net/index.php?topic=2820.msg94563#msg94563
