Ergotec AHS Basic Sport Handlebars c/w Comfort Bar-Ends - 25.4mm Clamp - Black

£62.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :

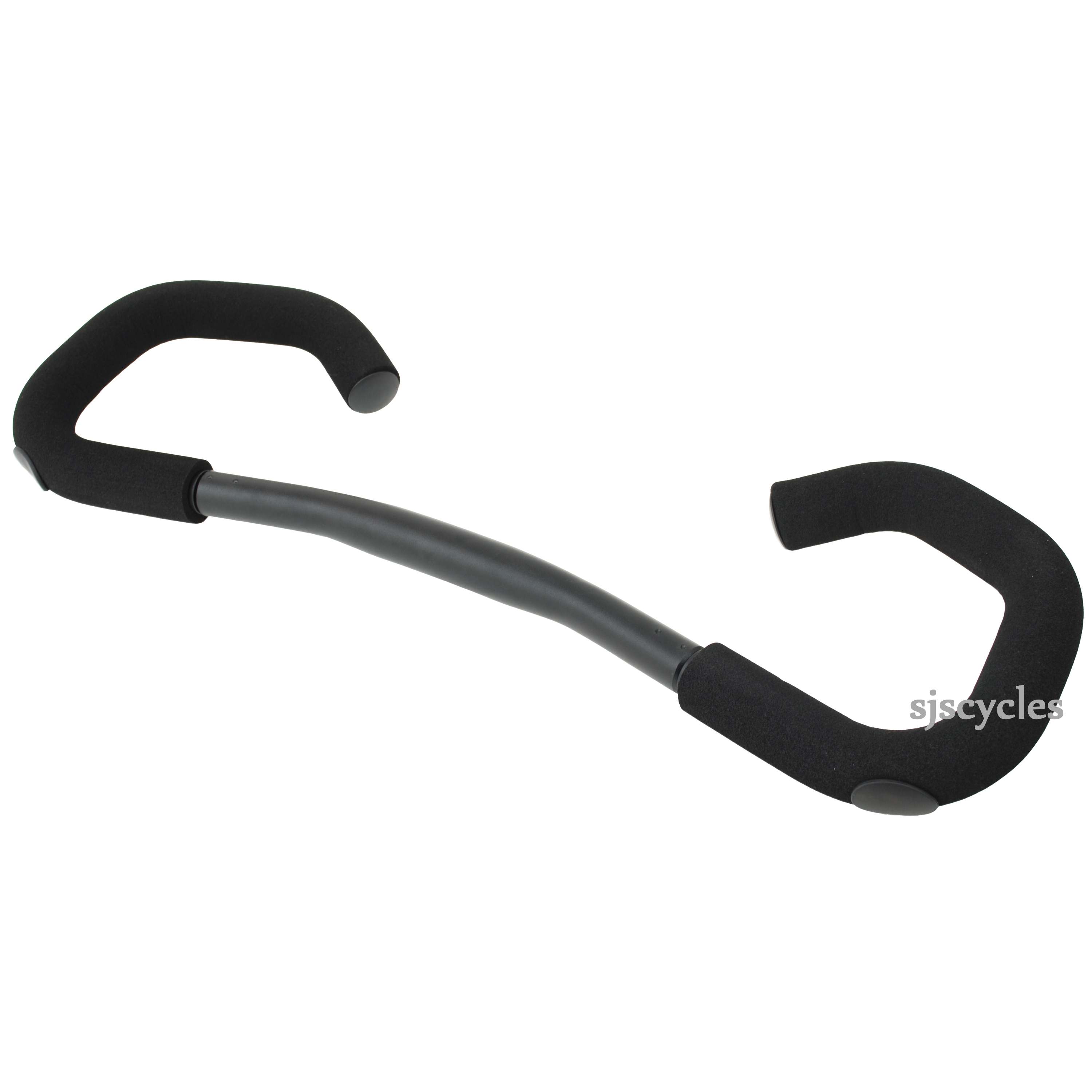

Adjustable multi-position handlebar system with ergonomically shaped centre piece. The handlebar ends are individually adjustable and removable.

- Width: 510mm (with 130mm Grip) or 580mm (with 170mm Grip)
- Rise: 0 Deg
- Angle: 12 Deg
- Weight: 685g (130 mm Grip Length)
- Clamp: 25.4 mm
- Bar Diameter: 22.2 mm
- Material: AL6061-T6

This product is rated to Humpert’s safety level of 2. This means it is suitable only for use on hybrid/trekking bikes that have a combined rider and luggage weight of below 100kg.
Product Reviews (0)
Questions & Answers (4) Q & A
Download File
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (4)
Where are the bars measured?
18 Jul 2018

I want to purchasethese bars formy hybrid but an unsure which size to go for.

Are the handlebars measured at their widest point?


Hi, yes the bars are measured at their widest point. e.g. outside edge to outside edge. Thanks
Trek FX3 use?
11 Jul 2018
Ive just bought a Trek FX3 2018 model and i cant get on with the bars and grips on it. I find my hands wanting a bar with more of a layed back flare.

Will these fit theTrek gear levers etc.?

Thanks for yor help.
Hi there,

I have checked the specifications of your bike and we do not stock the shifters that you currently have. I have found the closest thing to them by tektro and can confirm that they will fit on this bar.

What is the gap between the bar ends on the 580mm version?
02 Mar 2018
Hi there,

The gap is 260mm.

Hi, Can I Fit My Brake Levers And Twist Shifter (For 22.2Mm) In This Bar?
18 Aug 2016
I will have to put these at the end of the bar so my question is if i can go around the bends of the bar. Also, can i fit on this one the Humpert tribar easyliner? Thanks

The ends of this bar can be removed allowing you to fit normal brake levers and shifters to this bar absolutely fine. You should be okay to use the Humpert Tribar Easyliner with these bars.
