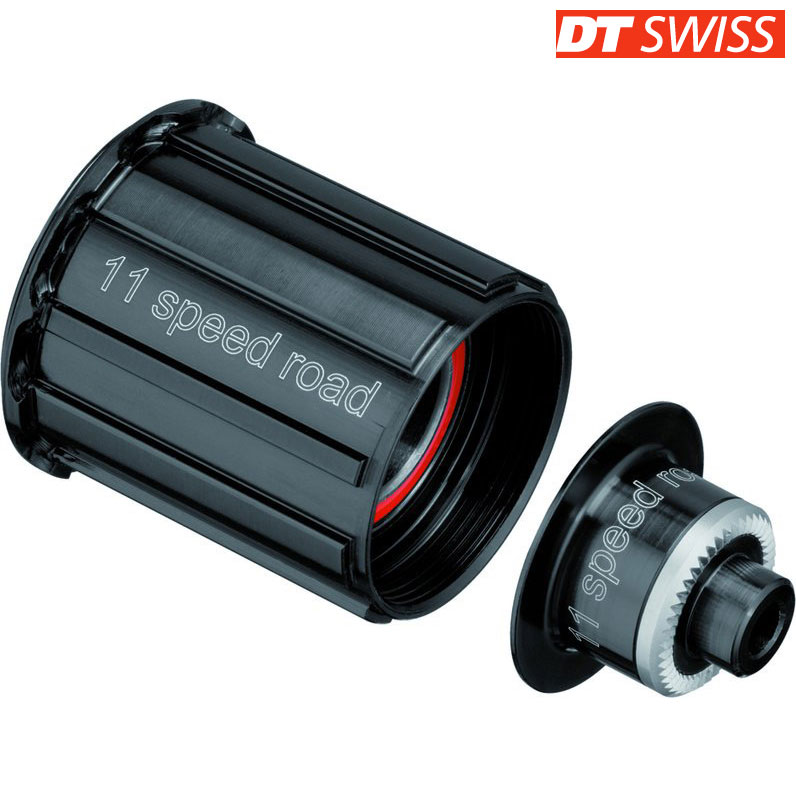

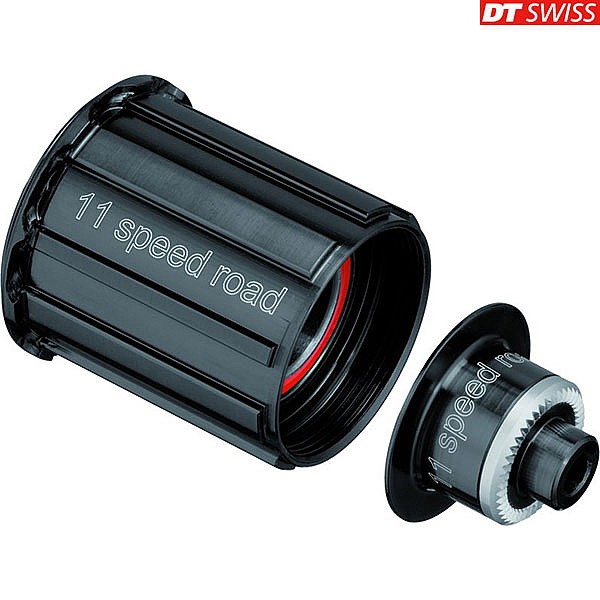

DT Swiss Ratchet Freehub Kit for Shimano 11 Spd Road - 130/135mm QR

£69.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
- Genuine DT Swiss Freehub body conversion kit, includes freehub body & drive side end cap
- Ratchet freehub, fits all DT aftermarket hubs & higher end wheels including 240
- For lower end complete wheels please see the Pawl freehub kits
- Freehub features high quality stainless steel bearings
- Requires no specialist tools to install, although you may need a vice & soft jaws to remove the current end cap if it's too tight to remove by hand
- If servicing the ratchets when installing the new freehub, we strongly recommend using DT's specialist molycote grease, only a very small amount is required
Product Reviews (0)
Questions & Answers (10) Q & A
Download File
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (10)
Can I use this freehub with 12mm road thru axle?
22 Dec 2022
Just need to change the end cap to the right one is that correct?
Thank you for your enquiry. Yes, you would just need to change the end cap to the 12mm version & you can use this freehub on your DT Swiss ratchet compatible hub.
Kind Regards. JP 22/12/22
Ratchet or ratchet EXP?
13 Sep 2022
Does this freehub fit the DT Swiss system with x2 loose ratchets or the system with x1 fixed/threaded and x1 loose ratchet (ratchet EXP)?
Thank you for your enquiry, this freehub fits the ratchet system with two loose ratchets. We hope this helps.
Kind Regards. JP 14/09/22
i have a set of reynolds DV 46UL C wheels from 2010. will this work with them?
21 May 2021
Sadly we cannot confirm- we suggest contacting Reynolds for compatible freehubs for your wheels!


JK 21.05.21
Is this the steel version or the alu one?
29 Oct 2020
I need a steel one to prevent bite marks
This is an alloy freehub.

JK 29.10.20
Can I use this to replace the Freehub on my DT Swiss 370 rear hub ?
25 Apr 2020
Hi, I believe the 370 is a mountain bike hub so you will need DT Swiss Ratchet Freehub Conversion Kit for Shimano MTB - 10 x 135mm our part 46124. Thanks 29/04/2020
Bontrager aeolus 3 with DT swiss 240 11spd Shimano
04 Apr 2020
Is this the appropriate freehub body for these wheel?
Yes, this would be suitable.

Thanks - 06/04/20
Is this the same as the DT Swiss 11spd freehub body (20652)
22 Feb 2020
The 20652 is "11 speed compatible freehub body for Reynolds DT Swiss compatible hub. Features a custom 180/240 DT Swiss freehub body made specifically for Reynolds." This is suitable for all DT aftermarket hubs and higher end wheels with Ratchet freehub.

Thanks - 24/02/20
I have a brand new 240s 10 speed 5mm axle rear hub
17 Nov 2019
I want to build up as a 11 speed wheel. Is this the correct hub conversion

This should be the correct one, however, as we have never done this we cannot say for certain I'm afraid.

Can I use this hub with the 12mm endcap instead of the QR?
29 May 2019
I have the 10 speed hub at the moment, but need to be able to use a 11 speed cassette.
HI there,

Yes, you can use different DT Swiss endcaps with this hub.

Dt Swiss Rotor Kit 11 speed Road Shimano - Please can you advise on the bearing internal diameter
13 Sep 2018
Hi there,

The bearing internal diameter is approximately 15mm.
