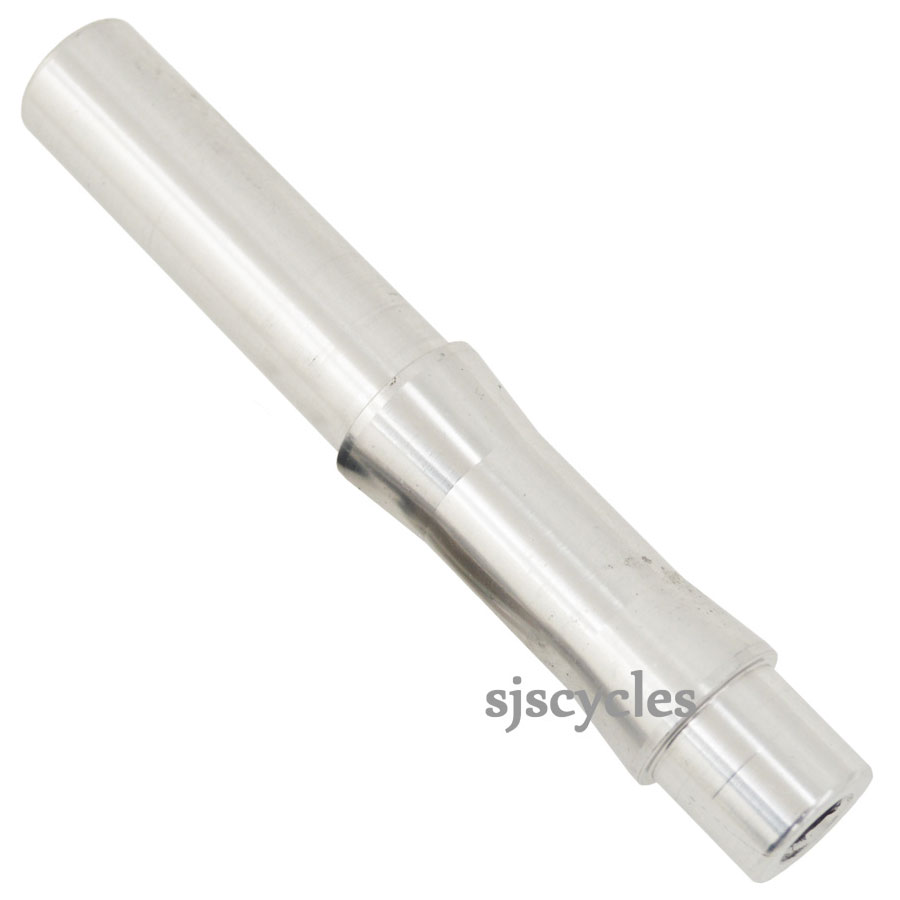

Hope Pro 4 Rear Hub Disc Axle - Silver - HUB229S

£15.75
was
£15.75 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Details
Product Reviews (0)
Questions & Answers (5) Q & A
Details
Can also be used on the following hubs:

- Hope Pro 4 SP24 SCS Rear Hub
- Hope Pro 2 EVO Rear Hub
- Hope XC6 Rear Hub
- Hope XC3 Rear Hub
Specification
Downloads
Download File
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (5)
Could you give me the dimensions please?
By
03 May 2019
Hello,

Could you gimme a hint what to buy? I need such axle: https://i.imgur.com/5QerThM.jpg
I noticed that 121mm might be ok, but what about other dimensions?

Thank you in advance,
Tom
Hi, the other dimensions are: 15.5 mm, 48 mm, 58 mm and diameter 17 mm. Sorry I have no good suggestions. Thanks 08/05/2019
Will this convert my hub?
By
09 Feb 2019
Hi

Is this what I need to convert my 135mm x 10mm bolt in hope evo 2 to a 142mm x 12mm bolt thru?

Cheers

Paul
Hi there,

Yes! You will just require the relevant end caps too.

Thanks - 11/02/19
What is the length of the axle. I need 135mm long. 12mm through axle.
By
13 Nov 2018
Hi,

This axle is 121mm in length. When fitted with the correct Hope 12x135mm end caps the spacing will then be the required 135mm.

Thanks. 14/11/18
Will this fit a hope 142 Pro 4 hub?
By
24 Aug 2018
I'm looking for a 12mm through axle that will fit a 142 hope pro 4 rear hub, will this do the job?
Hi there,

Yes this axle should fit absolutely fine.

Thanks.
Hi,is this axle the right one for a Hope 148 BOOST?If not please indicate me the right one.Regards
By
16 Jul 2018
This is not the boost version, you require HUB1004-10S which is a special order item. Simply contact our sales team to set this up.

Thanks
