Pitlock Set 24B Anti Theft Rear Wheel Thru Axle - Black - M12 x 1.5 - 175 mm

Please note this axle is M12 x 175mm x 1.5mm (Diameter x Total Length x Thread Pitch). This is to suit frames compatible with 12mm thru axles and have a frame-installation-width of 148mm OLN.

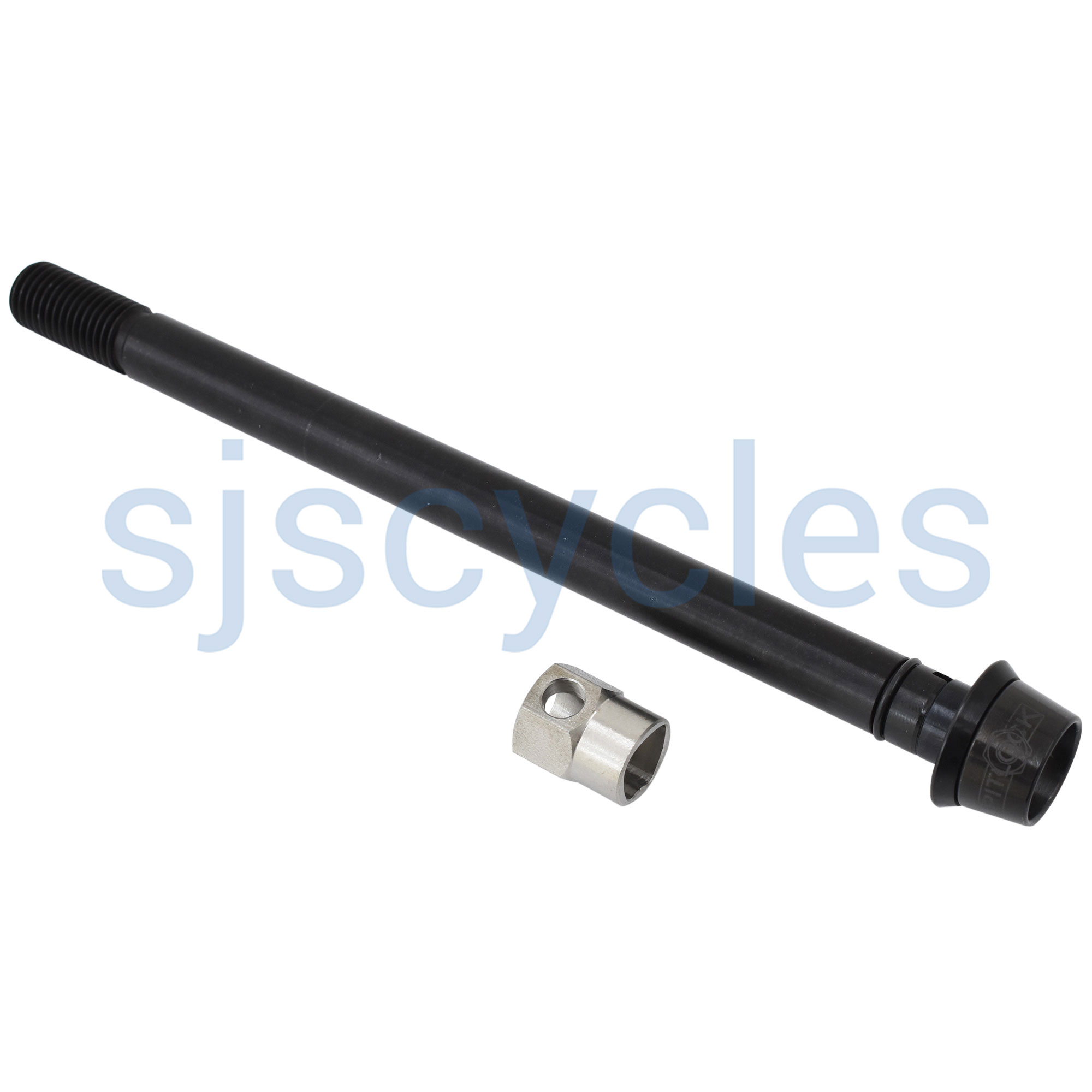

12mm thru axle for bike frames with E-Thru boost mount (rear wheel). Pitlock's thru axle securities are made of high quality aluminium and stainless steel. The thru axle will be replaced by the coded Pitlock Security axle and protects against casual theft.

Contents:
- 1 x Pitlock Thru Axle 12mm (Black)
- 1 x Pit-Key
- 1 x Code Card

Dimensions:
- Hub Standard: 12 x 148mm
- Axle Diameter: 12mm
- Installation Width: 148mm
- Total Length: 175mm
- Thread Length: 20mm
- Thread Pitch: M12 x 1.5mm
- Weight: 66g

Please compare the original axle on your bike with these dimensions to be sure to choose the correct Pitlock thru axle.
