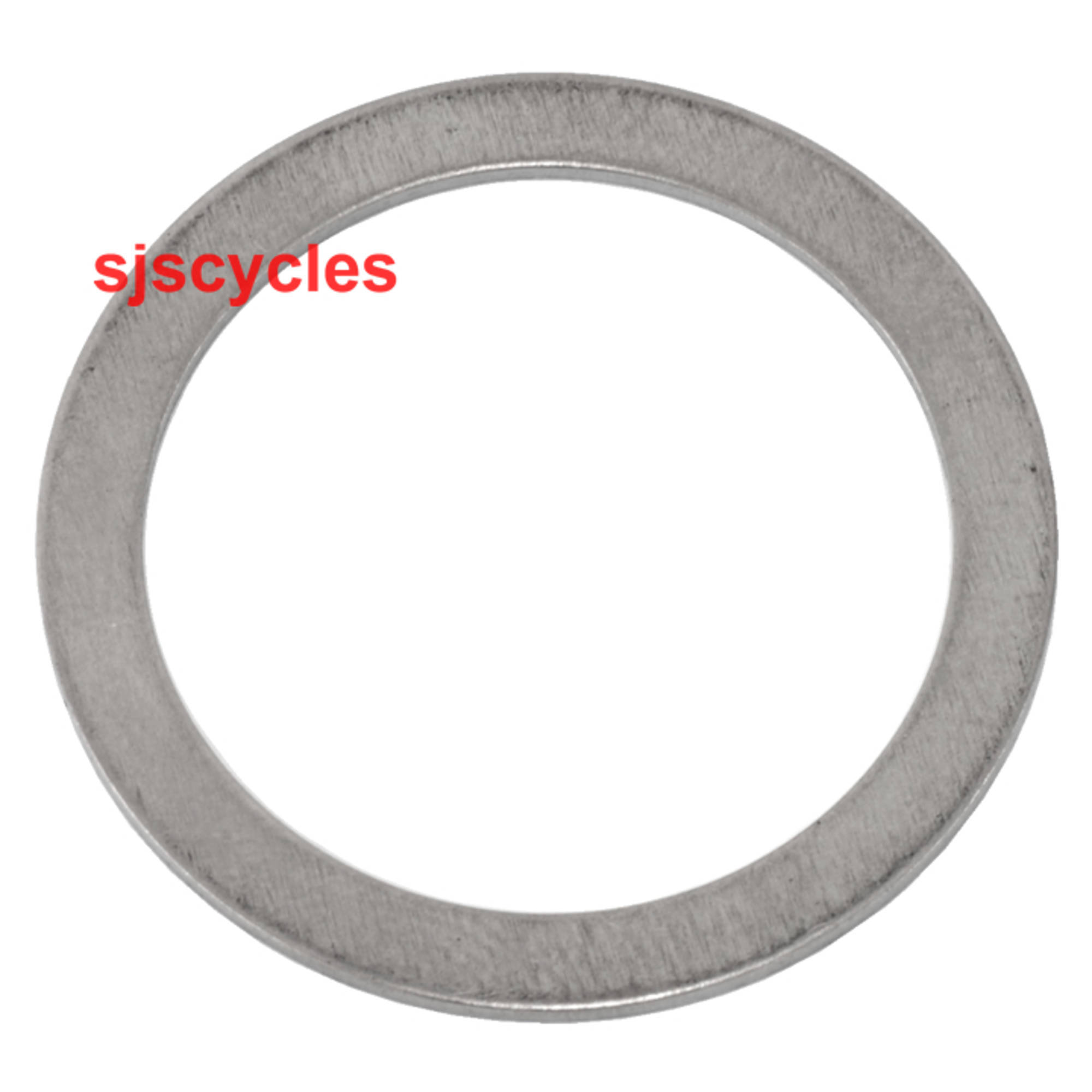

Shimano Deore XT FH-M770 Rear Freehub Body Washer - Y3CZ12000

£1.99
was
Details
Similar Products
Product Reviews (0)
Questions & Answers (1) Q & A
Details
For use with Shimano Deore XT FH-M770 rear hubs.

This Freehub Body Washer can also be used on the following rear hubs:

- Shimano XTR FH-M9010-B / FH-M9010 / FH-M9000
- Shimano Saint FH-M828 / FH-M825 / FH-M820 / FH-M815 / FH-M810
- Shimano Deore XT FH-M8010-B / FH-M8010 / FH-M8000 / FH-M788 / FH-M785 / FH-M778 / FH-M775 / FH-T780
- Shimano SLX FH-M7010-B / FH-M7010 / FH-M678
- Shimano Zee FH-M648 / FH-M645 / FH-M640
- Shimano Deore FH-M6010-B / FH-M6010 / FH-M618-B / FH-M618
- Shimano Dura-Ace FH-9000
- Shimano Ultegra FH-RS770 / FH-6800
- Shimano FH-CX75
- Shimano XTR WH-M9020-TL-R12-29 / WH-M9020-TL-R12-275
- Shimano XTR WH-M9000-TU-R12-29 / WH-M9000-TL-R12-29 / WH-M9000-TL-R12-275
- Shimano XTR WH-M9000-TU-R-29 / WH-M9000-TL-R-29 / WH-M9000-TL-R-275
- Shimano Deore XT WH-M8020-TL-R12-B-29 / WH-M8020-TL-R12-B-275 / WH-M8020-TL-R12-29 / WH-M8020-TL-R12-275
- Shimano Deore XT WH-M8000-TL-R12-B-29 / WH-M8000-TL-R12-B-275 / WH-M8000-TL-R12-29 / WH-M8000-TL-R12-275
- Shimano Deore XT WH-M8000-TL-R-29 / WH-M8000-TL-R-275
- Shimano Deore XT WH-M788-R12 / WH-M788-R
- Shimano Deore XT WH-M785-R12-29 / WH-M785-R12-275
- Shimano Deore XT WH-M785-R-29 / WH-M785-R-275 / WH-M785-R
- Shimano Deore XT WH-M776-R / WH-M775-R / WH-M770-R
- Shimano WH-MT500-CL-R12-B-29 / WH-MT500-CL-R12-B-275 / WH-MT500-CL-R12-29 / WH-MT500-CL-R12-275
- Shimano WH-MT75-R
- Shimano WH-MT68-R12 / WH-MT66-R12-29 / WH-MT66-R
- Shimano WH-MT35-CL-R12-29 / WH-MT35-CL-R12-275
- Shimano WH-MT15-A-R12-29 / WH-MT15-A-R12-275
- Shimano Dura-Ace WH-R9170-C60-TU-R12
- Shimano Dura-Ace WH-R9170-C40-TU-R12 / WH-R9170-C40-TL-R12
- Shimano Dura-Ace WH-R9100-C60-TU-R / WH-R9100-C60-CL-R
- Shimano Dura-Ace WH-R9100-C40-TU-R / WH-R9100-C40-CL-R
- Shimano Dura-Ace WH-R9100-C24-CL-R
- Shimano Dura-Ace WH-9000-C50-TU-R / WH-9000-C50-CL-R
- Shimano Dura-Ace WH-9000-C35-TU-R / WH-9000-C35-CL-R
- Shimano Dura-Ace WH-9000-C24-TU-R / WH-9000-C24-TL-R / WH-9000-C24-CL-R
- Shimano Ultegra WH-6800-R
- Shimano WH-RS770-C30-TL-R12 / WH-RS700-C30-TL-R
- Shimano WH-RS500-TL-R
- Shimano WH-RS170-CL-R12
- Shimano WH-RS81-C50-CL-R
- Shimano WH-RS81-C35-TL-R / WH-RS81-C35-CL-R
- Shimano WH-RS81-C24-TL-R / WH-RS81-C24-CL-R
- Shimano WH-RX830-TL-R / WH-RX31-R12

These are an "A" match which indicates that the parts are the same in materials, appearance, finish & size etc.

If the correct Freehub Body Washer is unavailable you can also use the freehub body washer from the following rear hubs:

- Shimano XTR FH-M988 / FH-M985 / FH-M975 / FH-M970
- Shimano XTR WH-M988-R12 / WH-M988-R / WH-M985-R

These are a "B" match which indicates that the parts are usable, but differ in materials, appearance, finish & size etc.

Genuine Shimano replacement part.
Specification
Downloads
Download File
Related products
Shimano Deore XT FH-M770 Rear Freehub Body Fixing Bolt - Y3CZ18000 Shimano Deore XT FH-M770 Rear Freehub Body Fixing Bolt - Y3CZ18000 £11.99 Inc VAT Quick view
Shimano Deore XT FH-M770 Rear Left Lock Nut Unit - Y3CZ98030 Shimano Deore XT FH-M770 Rear Left Lock Nut Unit - Y3CZ98030 £34.99 Inc VAT Quick view
Shimano Deore XT FH-M770 Rear Complete Hub Axle - Y3CZ98010 Shimano Deore XT FH-M770 Rear Complete Hub Axle - Y3CZ98010 £49.99 Inc VAT Quick view
Shimano Deore XT FH-M770 Complete Freehub Body - Y3CZ98040 Shimano Deore XT FH-M770 Complete Freehub Body - Y3CZ98040 £49.99 Inc VAT Quick view
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (1)
Freehub Body Washers. Cs M770
By
09 Jun 2014
Good Morning
Will the your part no. 20078 fit as a body washer for the above free hub. It is not scheduled in the list of hubs on the item page.
Do you stock the 'correct' hub?
Regards
Hi,

This is a washer that fits in behind the free-hub body on a large number of hubs including the FH-M770.

Thanks.
