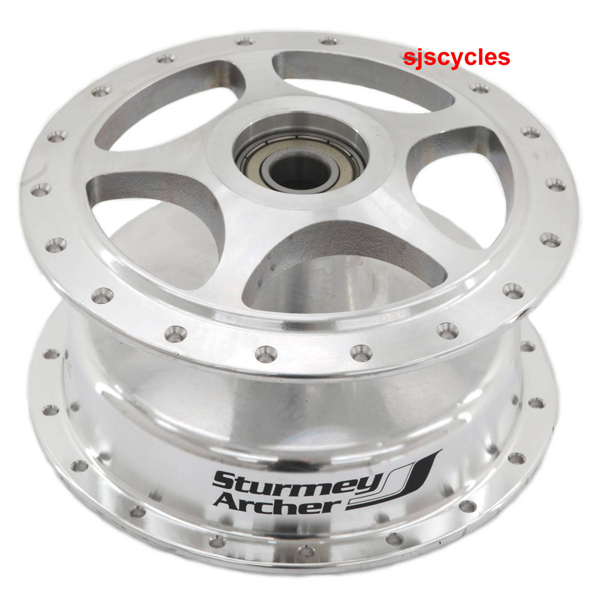

Sturmey Archer XL-SD Hub Shell Assembly 36H 90 mm - HSB520

Customer Reviews (1)
5 / 5| Write your review
£51.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Detailed information and exploded diagrams for all Sturmey Archer parts can be found at Sturmey Archer - click here, Sturmey Archer Historical Hub Archive - click here or Tony Hadlands Pages - click here

- all open a new browser windows.
Product Reviews (1)
Questions & Answers (4) Q & A
Download File
Product Reviews (1)
Overall Product Rating 5 / 5
quality product for the right price
By PIeter Buyse
23 Feb 2018
5 / 5
I recommend this product
Prosquality product, good price, fast delivery
I bought this hub shell assembly together with all the necessary parts to assemble a new wheel with a 90mm drum brake for a cargo bike i'm building from scratch, It looks fantastic and i'm really sure this is a top quality drumbrake, I seriously recommend this one
Questions & Answers (4)
What is the width of the X-SD hub shell?
02 Oct 2021
Hello - I'm working on a project for which this drum shell may be useful-
do you know the width across the shell - i.e. the overlocknut distance if it were a conventional hub? Thank you!
Width of this shell is approx 70mm,

JK 04.10.21
I need to know the detail specification
02 May 2020
I would like to know more about the specification of this product.
Best Regards,
This is a PART for a specific hub, there is no published specification RT
Sturmey Archer Xl-Sd Complete Components.
09 Jun 2017
Hi, I wish to get two SA single sided drum brake hubs. Can you tell me the parts I need to order?


You will need an axle to start. There are 3 options, 90mm, 100mm, 130mm.

The rest of the parts will be listed below with an sjs part number.


22046 or 22045



Sturmey Archer Xl-Sd - What Parts Do I Need To Buy For The Brake Components
22 Jun 2016
I assume I will need left and right hand components

The brake units are whole units with the only things missing for the brake are the frame clip and the cable parts. The left is SJSC part number 22043 and the right is SJSC part number 22044.
