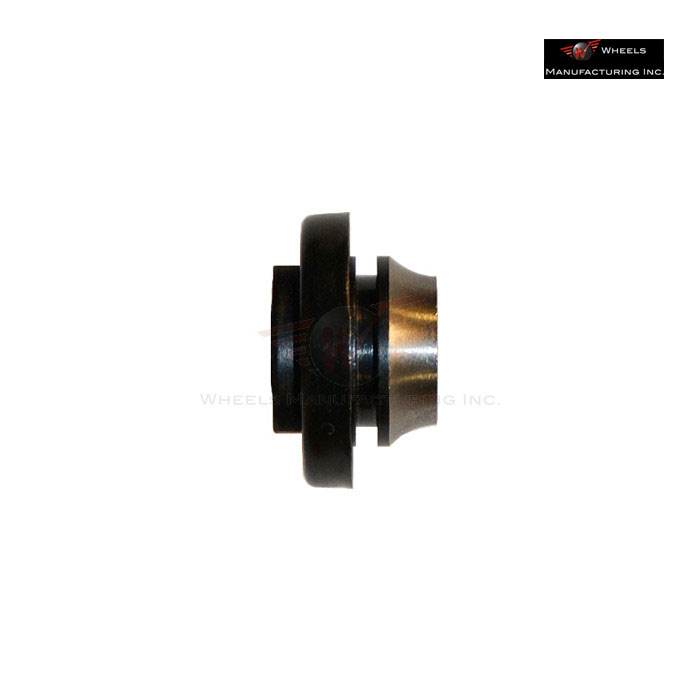

Wheels Manufacturing Replacement Front Axle Cone - CN-R099

Customer Reviews (2)
5 / 5| Write your review
£19.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Shimano Compatible 9 x 1 mm Front Cone

Compatible with the following front hubs;
- Deore XT M750 (9 mm Axle)
- Deore XT M727 (9 mm Axle)
- Deore XT M737 (9mm Axle)
- Deore LX M570 (9 mm Axle)
- Deore LX M563 (9 mm Axle)
Product Reviews (2)
Questions & Answers (2) Q & A
Download File
Product Reviews (2)
Overall Product Rating 5 / 5
Fits to shimano wh-r500
By Balage
02 May 2018
5 / 5
I recommend this product
ProsFits to wh-r500 front axle
I ordered this cone as a replacement part for my wh-r500 front axle, because the original shimano part is not available any more. SJS part fits fine, the only thing you have to do is to remove the dust cover from the new and replace it with the old one.
By Clifford Rogers
07 Sep 2016
5 / 5
I recommend this product
Needed a replacement cone for a Shimano Deore LX M570 hub. Stripped down hub, regreased, job done!
Questions & Answers (2)
Is this in any way compatible with the WH-R500 front hub?
19 Jul 2017

We have unfortunately never tried this cone with your wheel so can't say for sure I'm afraid. This cone is 12.7mm long and has a main diameter of 15mm and a dust cover diameter of 22mm so if these matches the dimensions of your current cone then this will fit fine.

Hbm737 Cone Compatibility
17 May 2016
Hi, I need two replacement cones for my old XT front hub (HB_M737) and your information sheet shows your CNR099 cone as being the replacement, but on your website, the product page for CNR099 does not list that hub as compatible. If you could please confirm that this is suitable, I will order two. Many thanks

Sometimes all of the individual hubs are not listed out in the individual product pages for the cones, we try to update these as often as possible but sometimes a few get missed. This CN-R099 cone is indeed compatible with the HB-M737 hub that you have.
