Wolf Tooth Boostinator DF2 for DT Swiss 240 Front

£30.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Boostinator kits allow non-boost wheels to be mounted in Boost spacing frames and forks.

While incremental, the benefits of the 'Boost' 15 x 110mm front and 12 x 148mm rear axle standards are clear: better clearance for fatter tyres and rims and reduced dish for stiffer, stronger wheels. The big bummer? Taking full advantage requires not only a new frame and fork, but new wheels as well.

In response, we have developed the Boostinator. When paired with compatible 15 x 100mm or 12 x 142mm hubs, Boostinator kits allow existing wheels to be mounted in Boost-standard frames and forks. Disc and drivetrain positions are maintained and, thanks to a quick re-dish, spoke bracing angles are improved.

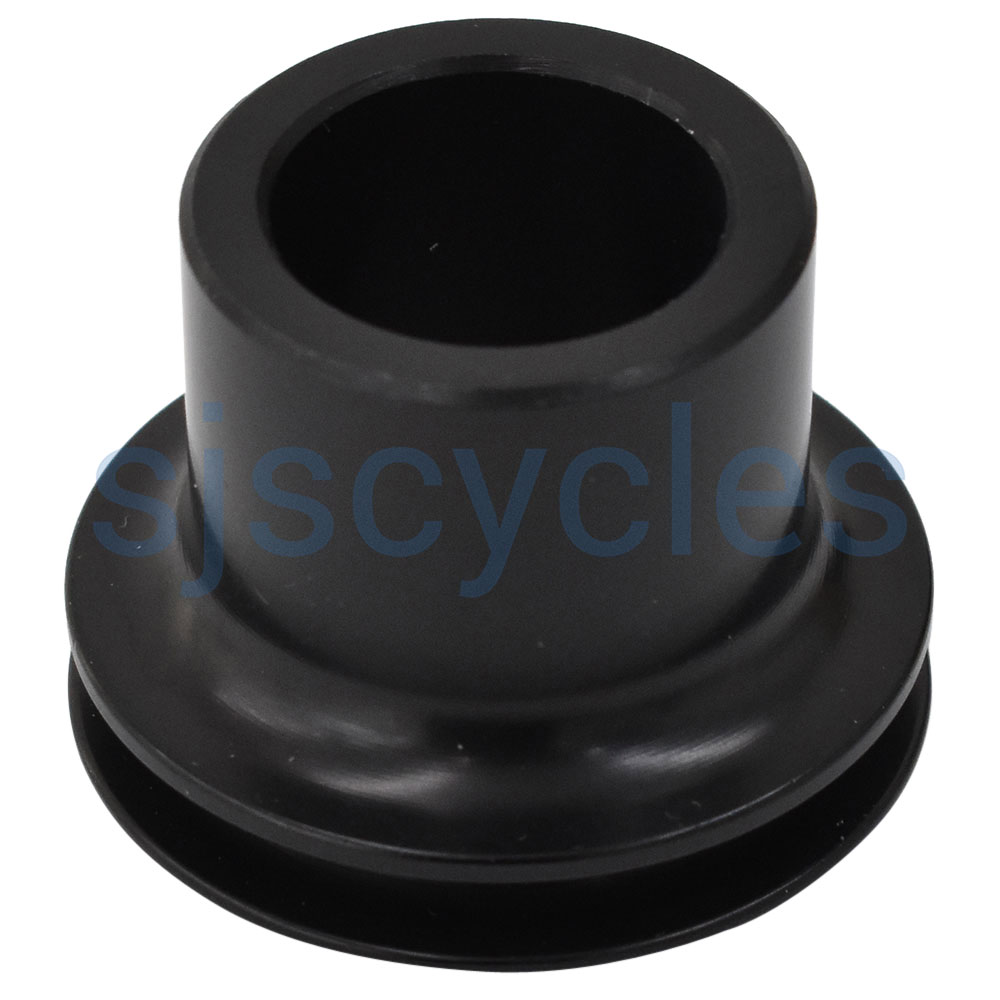

Boostinator kits consist of a specially-designed axle end cap and -in the case of rear kits- a precision-machined rotor spacer with a set of six high-strength bolts. In keeping with Boost specifications, the disc and cassette are shifted outboard, allowing brakes and derailleurs to function as designed.

- Front Boostinators are only an endcap and do not require rotor spacer. The wheel is re-dished
- Hub spacing is 100mm and the Boostinator makes it 110mm
- Compatible with 6-bolt front wheels and SOME centerlock models
- NOT recommended (or safe) for non-symmetric lacing like the 2:1 lacing found on some of Industy Nine's wheels
- NOTE: You will need to re-dish your wheel after installing any Boostinator

Boostinator DF2:
- The Boostinator DF2 is compatible with DT-Swiss 2011 and newer 15 x 100mm 240s front hubs
- Use DF-20 for 240s Oversize (20mm convertible) hubs. The hubs have a threaded non-disc side endcap that has little wrench flats on it
- Centerlock hubs are supported
- The Boostinator DF2 is also compatible with some complete DT Swiss Spline One front wheels

Compatible Front Wheels:
- XR 1501 Spline One (2016 and older)
- XM 1501 Spline One (2016 and older)
- EX 1501 Spline One (2016 and older)

The new 2017 DT Swiss 1500 series front wheels are not compatible with the DF2 Front Boostinator. To determine if your wheelset is compatible, remove the non-rotor side endcap and measure the OD. If the OD is 28mm, the DF2 is NOT compatible. The DF2 is only compatible if the OD is approx 29.7mm.

If your wheelset is not listed, it is not compatible.

Tech Specs
- Weight: 6g
