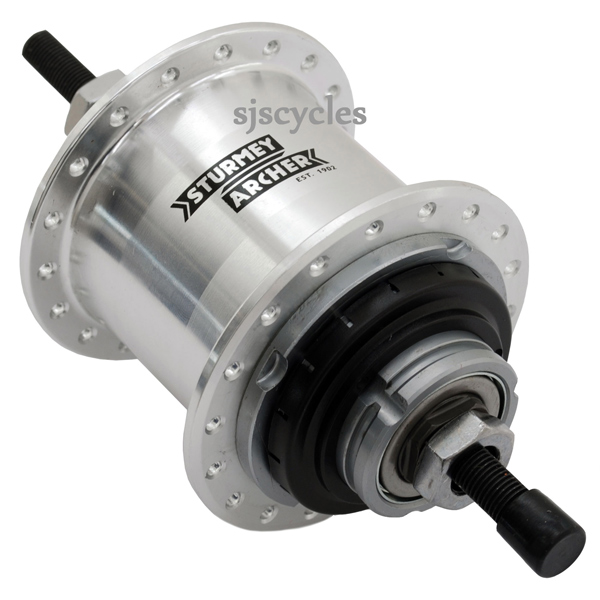

Sturmey Archer S-RF3 3Spd Aluminium Hub - 117mm OLN - 36 Hole
£104.99
was
£104.99
was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Details
- Hub Shell Material - 6061 Aluminum
- Axle Diameter - 13/32” Slotted
- Axle Length - 163mm
- Over Locknut Dimension - 117mm
- Right Axle Protrusion Length - 20.0mm
- Left Axle Protrusion Length - 20.3mm
- Spoke Holes - 36
- Pitch Circle Diameter - 67mm
- Flange Width - 54.0mm
- Spoke Compatibility - 13g or 14g
- Chain Line: 1/8” Flat 13T ? 19T - 40.0 38.4
- Chain Line: 1/8” Dished 17T ? 22T - 41.8 40.1 38.4 36.7
- Chain Line: 3/32” Flat 16T - 40.3 39.7 38.6 38.0
- Chain Line: 3/32” Dished 17T ? 22T - 42.0 40.4 37.9 36.2
- Indicator Chain - HSA126 Mark II
- Weight - 1020g
Gear Ratio:
- Overall Range - 177%
- Gear 1 - 0.75 (-25.0%)
- Gear 2 - 1.00 (Direct Drive)
- Gear 3 - 1.33 (+33.3%)
Includes 1/2 x 1/8 Inch 18T Dished Sprocket and SL-S30 Thumb Shifter.
- Axle Diameter - 13/32” Slotted
- Axle Length - 163mm
- Over Locknut Dimension - 117mm
- Right Axle Protrusion Length - 20.0mm
- Left Axle Protrusion Length - 20.3mm
- Spoke Holes - 36
- Pitch Circle Diameter - 67mm
- Flange Width - 54.0mm
- Spoke Compatibility - 13g or 14g
- Chain Line: 1/8” Flat 13T ? 19T - 40.0 38.4
- Chain Line: 1/8” Dished 17T ? 22T - 41.8 40.1 38.4 36.7
- Chain Line: 3/32” Flat 16T - 40.3 39.7 38.6 38.0
- Chain Line: 3/32” Dished 17T ? 22T - 42.0 40.4 37.9 36.2
- Indicator Chain - HSA126 Mark II
- Weight - 1020g
Gear Ratio:
- Overall Range - 177%
- Gear 1 - 0.75 (-25.0%)
- Gear 2 - 1.00 (Direct Drive)
- Gear 3 - 1.33 (+33.3%)
Includes 1/2 x 1/8 Inch 18T Dished Sprocket and SL-S30 Thumb Shifter.
Specification
Downloads
Download File
Related products
Sturmey Archer 18T Sprocket - 1/8 Dished C.P. - HSL838
£2.99 Inc VAT
Quick view
Sturmey Archer SLS30-T 3 Speed Thumbshifter - HSJ962
£15.99 Inc VAT
Quick view
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (5)
Can I fit a coaster brake to this?
By Chris
23 Aug 2021
I need to get on and build a bike and the S-RC3 is currently out of stock. If I buy this instead can I fit a coaster brake to this hub?
SJS Customer Service:
Thank you for your enquiry, no sorry it is not suitable for a coaster brake
WD 23/08/21
WD 23/08/21
My chainline is 42 mm, in 19T wich sprocket I should buy?
By Pier Luigi Flamigni
01 Oct 2018
Te flat or the dished?
SJS Customer Service:
Hi there,
It should'nt make a huge amount of difference. It also depends on the amount of chainrings that you are running on the front. Because of your chainline the flat one would fare a bit better but it wont make a huge amount of difference either way.
Thanks.
It should'nt make a huge amount of difference. It also depends on the amount of chainrings that you are running on the front. Because of your chainline the flat one would fare a bit better but it wont make a huge amount of difference either way.
Thanks.
Items included with the S-RF3 3Spd hub purchase
By domenic
11 Aug 2017
Hi
Does this item come supplied with both gear chain pull options for the indicator chain.
That is both the plastic roller and fulcrum lever arrangement and the traditional right hand axle nut with inspection hole as pictured.
thanks
Does this item come supplied with both gear chain pull options for the indicator chain.
That is both the plastic roller and fulcrum lever arrangement and the traditional right hand axle nut with inspection hole as pictured.
thanks
SJS Customer Service:
Yes, what you see in the photo is what you should receive.
Can This Hub Be Respaced At 110Mm As Per The 28H Version. Thanks
By Paul Eggett
18 Oct 2016
SJS Customer Service:
Hi,
You could re-space this down if you wanted to, the axle would protrude from the frame a long way though.
Thanks.
You could re-space this down if you wanted to, the axle would protrude from the frame a long way though.
Thanks.
Sturmey Archer Hub
By Peter
08 Feb 2015
Hi
Im looking for this
but with a 119mm OLD. Can you order one for me?
Cheers
Peter
Im looking for this
but with a 119mm OLD. Can you order one for me?
Cheers
Peter
SJS Customer Service:
Hi,
This hub is not available with an OLD of 119mm, it is only 2mm large however so will still fit. Your frame should easily be able clamp down enough to hold the hub tight or alternatively if you were to fit a 2mm washer to the axle you should still have plenty of thread to get the nuts done up fully.
Thanks.
This hub is not available with an OLD of 119mm, it is only 2mm large however so will still fit. Your frame should easily be able clamp down enough to hold the hub tight or alternatively if you were to fit a 2mm washer to the axle you should still have plenty of thread to get the nuts done up fully.
Thanks.
