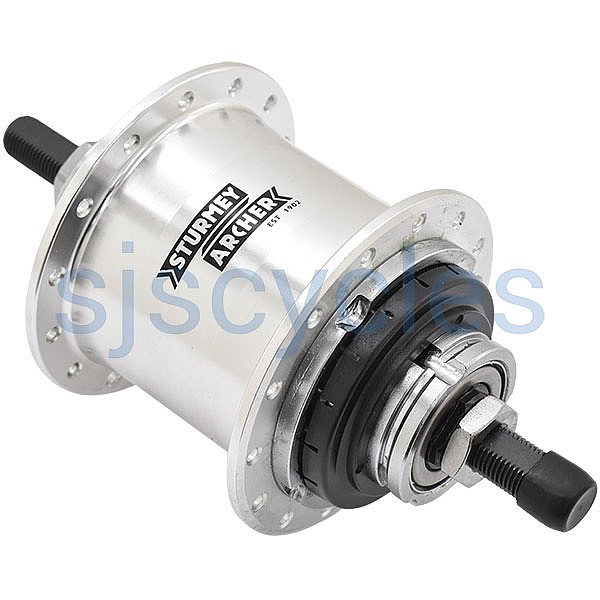

Sturmey Archer S-RF3 3Spd Aluminium Freewheel Hub with Gear Control - 28 Hole

£67.99
was
Details
Similar Products
Product Reviews (0)
Questions & Answers (1) Q & A
Details
- Hub Shell Material - 6061 Aluminum
- Axle Diameter - 13/32” Slotted
- Axle Length - 148mm
- Over Locknut Dimension - 108mm can be adjusted to 111mm (to fit Brompton) by the addition of SJSC part # 19079 (HMN132) on the left hand side.
- Right Axle Protrusion Length - 20.0mm
- Left Axle Protrusion Length - 20.3mm
- Spoke Holes - 28
- Pitch Circle Diameter - 67mm
- Flange Width - 54.0mm
- Spoke Compatibility - 13g or 14g
- Chain Line: 1/8” Flat 13T ? 19T - 40.0 38.4
- Chain Line: 1/8” Dished 17T ? 22T - 41.8 40.1 38.4 36.7
- Chain Line: 3/32” Flat 16T - 40.3 39.7 38.6 38.0
- Chain Line: 3/32” Dished 17T ? 22T - 42.0 40.4 37.9 36.2
- Indicator Chain - HSA126 Mark II
- Weight - 1020g

Gear Ratio:
- Overall Range - 177%
- Gear 1 - 0.75 (-25.0%)
- Gear 2 - 1.00 (Direct Drive)
- Gear 3 - 1.33 (+33.3%)

PLEASE NOTE: Does not include sprocket or shifter (must be purchased seperately)
Specification
Downloads
Download File
Similar products
Sturmey Archer 18T Sprocket - 1/8 Dished C.P. - HSL838 Sturmey Archer 18T Sprocket - 1/8 Dished C.P. - HSL838 £2.99 Inc VAT Quick view
3 Speed Sturmey Archer SLS30-T Thumbshifter - HSJ962 3 Speed Sturmey Archer SLS30-T Thumbshifter - HSJ962 £15.99 Inc VAT Quick view
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (1)
Different Gear Lever
By
29 May 2014
Hello, is for this product set up an different Sturmey Archer lever also possible?

Thanks for your feedback.
Sebastian
SJS Customer Service:
Hi,

Unfortunately we have no control over which shifter is supplied with the hub and we cannot switch them out either. If unsure you can place an order over the phone and we can check which shifter is currently supplied with the hub and inform you if you will need to buy the shifter of your choice separately or not.

Thanks.
