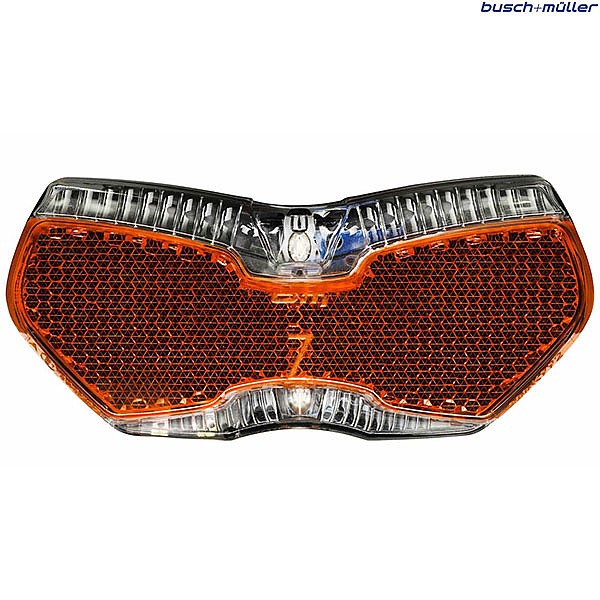

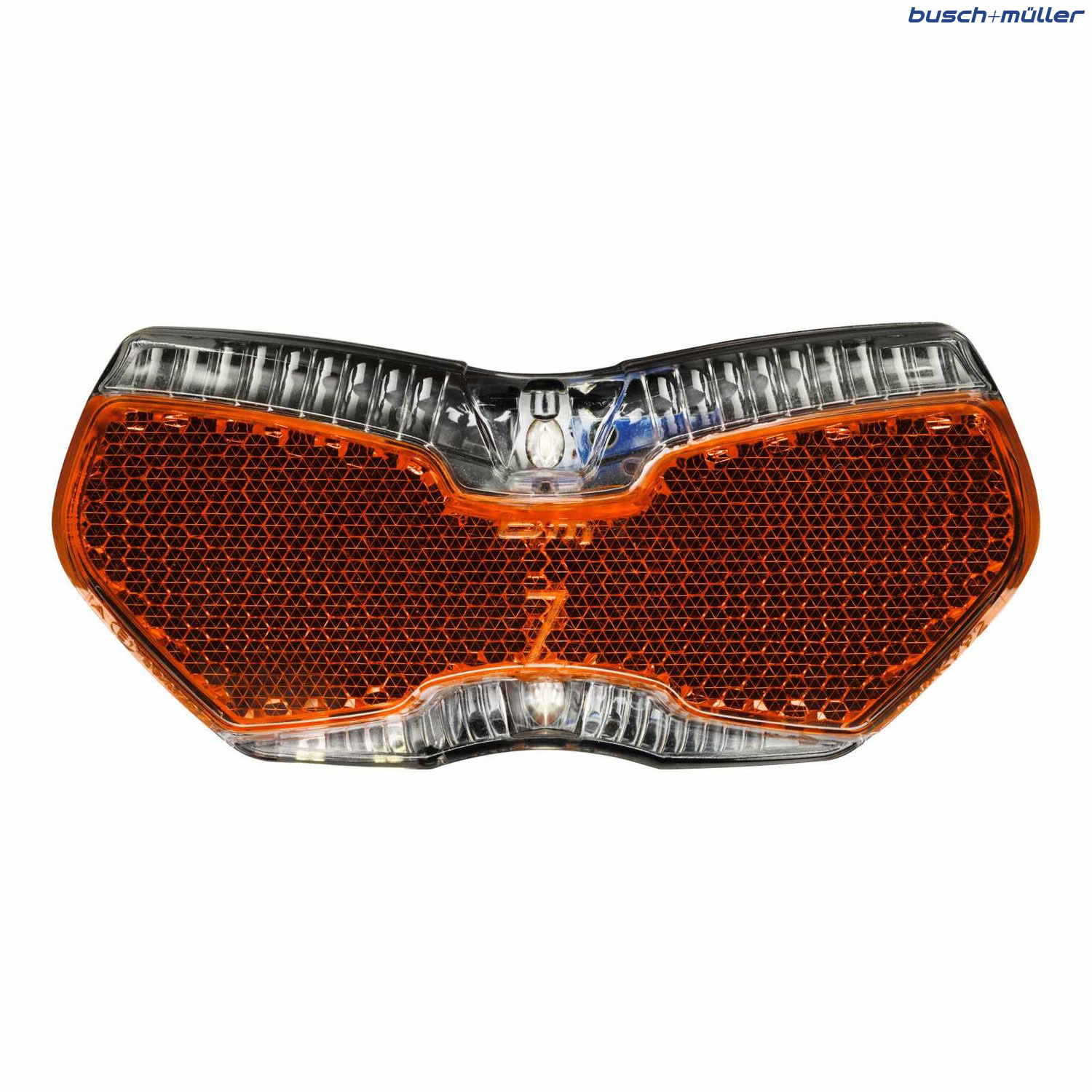

Busch & Muller Toplight View E Rack Mounted E-Bike Rear Light - 50-80 mm

£13.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
The Toplight View E can be connected to E-Bike systems which provide between 5 and 15V DC feed. The input voltage can also be obtained by connecting the rear light to one of the B&M headlights that convert a higher input voltage and output the required such as the Cyo E. Optically, the Toplight View E appears the same as its dynamo counterpart, but the circuit board is different and the useage may not be interchanged.

B&M recommend that a specialist E-Bike retailer install the lights for you.

- Can be connected to all DC power sources supplying between 5-15V DC
- Can be powered by connecting to the Cyo E
- Can be mounted on the pannier rack
- Cannot be dynamo driven

Please note the following recommendations from Busch & Muller if you are planning to install your own E-Bike lighting system:
- Establish and/or measure the voltage on the cables or connecting point intended for the connection. Make sure this is within the parameters of the light specification
- Establish and/or measure the polarity of the above mentioned connection and make sure to connect respectively to the correct pole using the instructions and/or the +/- signs on the light
- If you are not able to establish either of the above, or are not sure then please refer to your local electric bike specialist to install the lights for you
Product Reviews (0)
Questions & Answers (1) Q & A
Download File
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (1)
Does light come with cable
27 Oct 2017
Does the following light come with any cable ? :

If not do you sell any with the correct spade connectors ?

Kind Regards,


This light does not come with any cable but we do offer it separately under SJSC part number 25542. The connectors are 2.8mm to suit B&M lights.
