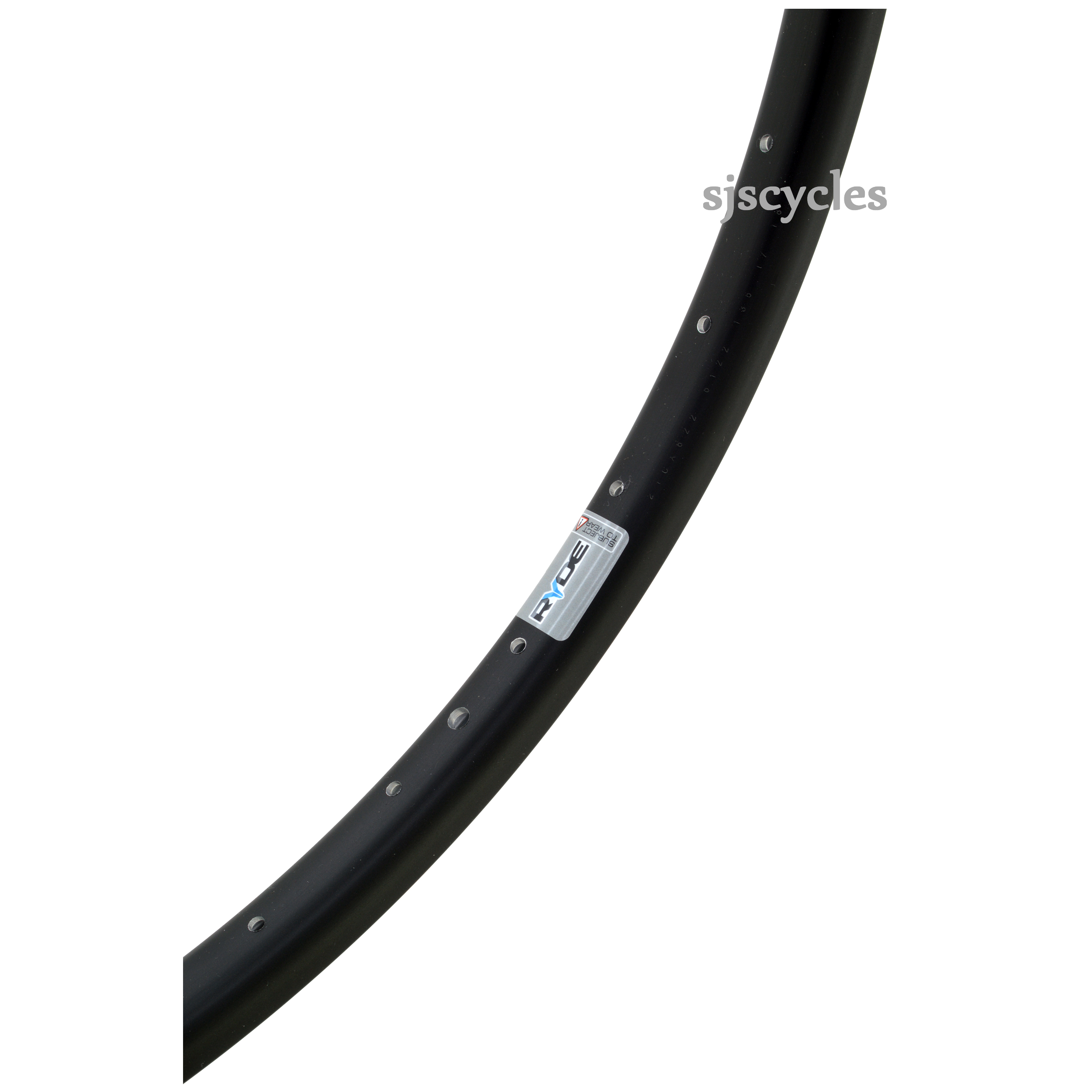

Ryde Andra 321 700c, 622 Disc Rim - Black

£24.99
was
Holes
£24.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Details
Product Reviews (0)
Questions & Answers (1) Q & A
Details
- Size: 622 (28")
- Max. Spoke Tension (N): 1300
- Weight (g): 680
- Optimum Tyre Width (mm): 23-45
- Eyelets: No Eyelets
Specification
Downloads
Download File
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (1)
Spoke hole specifications
By
09 Dec 2017
Ryde's website says that this Ryde andra 321 rim can be drilled with different spoke hole angles to fit the required angle of different hubs. could you please provide me with the full specifications of this ryde andra 321 622 MM including spoke hole drill angle, offset and valve hole size? thank you SJS part number 43779H36, MPNRM71321
Hi there,

Ryde offer a standard and a custom option.

We use the standard option for our stock rims which have the following specification:

Dia. Spoke hole nipple bed (mm) 4,5
Zig zag (mm) 1,5 - (Offset)
Valve hole ø (mm) 6,5 F
Angle rad/axi 8°/2° - The spoke holes are drilled and counter sunk so the nipple angle will adjust to what is required.

Thanks
