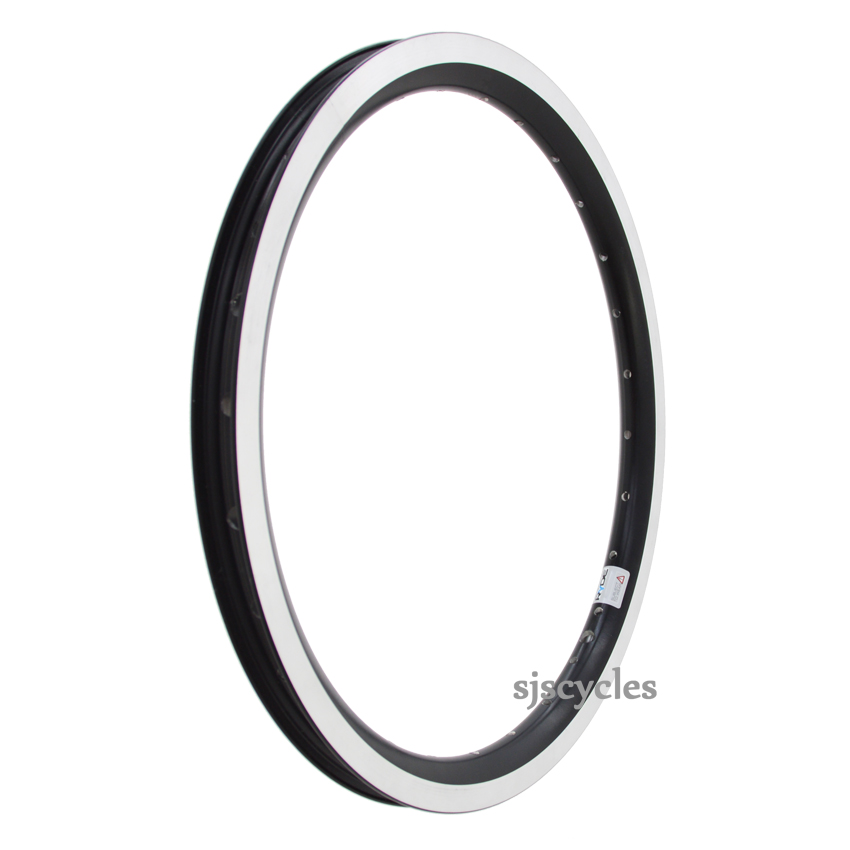

Ryde Andra 20 16 x 1 3/8 349 UP Alloy Rim - Black - 28 Hole
£23.99
was
£23.99
was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Details
An extra strong rim for Bromptons etc.
The rims have directed spoke holes so they are especially suitable for rear hub gears and front dynohubs.
The spoke nipple leaves the rim directed towards the correct hole in the hub to reduce the spoke bend within the nipple.
Must not be built radial
ERD - 323mm
Weight - 370g
The rims have directed spoke holes so they are especially suitable for rear hub gears and front dynohubs.
The spoke nipple leaves the rim directed towards the correct hole in the hub to reduce the spoke bend within the nipple.
Must not be built radial
ERD - 323mm
Weight - 370g
Specification
Downloads
Download File
Related products
![Wheel Build with 14g DT Champion Stainless SILVER spokes - per wheel](/images/products/small/4595.jpg)
Product Reviews (1)
Overall Product Rating 5 / 5
Great Rim For Bromptons
By Anonymous
03 Dec 2015
5 / 5
I recommend this product
ConsA bit more money than the stock Brompton rim
ProsBetter rim than stock Brompton
The standard Brompton tire mounts on to this rim just as easily as on the stock Brompton rim, The angle drilling for the spoke holes greatly reduces the bending at the nipples when laced up on a Sturmey Archer XRF8, W 8Spd hub with a 2x lacing. Overall depth of rim is about 25.5 mm, about 5.5mm more than the stock Brompton rim. The machined brake surface is perhaps 1mm wider than the stock Brompton rim.
Questions & Answers (14)
Can this rim also be used on Brompton front hub? Standard or lightweight front hub.
By Harry
03 Jun 2021
SJS Customer Service:
Thank you for your enquiry, yes will be fine but must not be built radial
WD 03/06/21
WD 03/06/21
What spoke length do I need for this rim with a front SON XS hub?
By Anonymous
02 Apr 2021
SJS Customer Service:
We have not built this combination, so cannot confirm with complete certainty, but we calculate 141mm.
Thanks - 06/04/21
Thanks - 06/04/21
Type of Drill
By MUHAMMAD ARTONO
03 Feb 2021
What Type of Drill ?
Can I request Angle Drill or Standard Drill ?
Can I request Angle Drill or Standard Drill ?
SJS Customer Service:
Thank you for your enquiry, this rim is only available in standard drill.
Regards WD 03/02/21
Regards WD 03/02/21
Can I use this rim to replace the rim on my SRAM 3/6 speed Brompton hub?
By Jonathon Graham
21 Sep 2019
If so what spoke length do I need please? My current length of spoke is 154mm 13g on the older single walled rim. Many thanks.
SJS Customer Service:
Yes this would be suitable, however we would strongly consider changing the hub as the SRAM hub sprockets are no longer available.
The BWR hub is here - SJS Cycles part number : 50986
We can build this into an Andra rim for you or suggest spoke length of 144 mm with BWR hub, we do not have the measurements to recommend spokes for a SRAM hub.
Thanks - 24/09/19
The BWR hub is here - SJS Cycles part number : 50986
We can build this into an Andra rim for you or suggest spoke length of 144 mm with BWR hub, we do not have the measurements to recommend spokes for a SRAM hub.
Thanks - 24/09/19
Spoke sizes.
By APVN
15 Jun 2019
I've decided to go for this option (instead of the single-walled rims). So, I was wondering if you could kindly advise me on the correct spoke sizes to fit a Bromton BRW Hub, and a Front Shimano DH-F703-SB.
Cheers!
Cheers!
SJS Customer Service:
Hi there,
Unfortunately, the DH-F703-SB only comes with a 24 hole fitting and the rims that you are after do not have this amount of holes im afraid.
Unfortunately, the DH-F703-SB only comes with a 24 hole fitting and the rims that you are after do not have this amount of holes im afraid.
Will I be able to reuse the spokes with this rim?
By Nick
02 Oct 2018
I'm planning to build a standard rear brompton wheel. I bought the wheel from you two years ago. It has the wide range hub.
SJS Customer Service:
No you will need different spoke lengths due to the rim ERD size change.
Thanks
Thanks
Which spokes and nipples with SV-9 FB hub dynamo?
By Eckhard
27 Aug 2018
SJS Customer Service:
Hi there,
Please contact our sales team with more information such as the hub width, 100 or 74mm for Brompton?
Thanks
Please contact our sales team with more information such as the hub width, 100 or 74mm for Brompton?
Thanks
Could I use these to build some 16" kids bike wheels?
By Bill
06 Aug 2018
...or are Brompton wheels a special measurement?
SJS Customer Service:
You could use these on numerous bicycles, simply the right size for a Brompton.
Thanks
Thanks
Can you advise me what length spokes I should order for a Brompton rear hub rebuild (Sachs 3 speed)
By Tim Greaves
19 Sep 2017
I am ordering the Andra 20 angle drilled rim (38518) too
SJS Customer Service:
Hello,
The length that you should need is 158mm spokes.
Thanks.
The length that you should need is 158mm spokes.
Thanks.
Are 146Mm Spokes A Valid Alternative?
By Gilles
16 Nov 2016
The only 146mm spokes SJS sells are for front wheels (ie. radial):
https://www.sjscycles.co.uk/spokes-other/?length=145
Are they a good alternative to build a BWR wheel?
https://www.sjscycles.co.uk/spokes-other/?length=145
Are they a good alternative to build a BWR wheel?
SJS Customer Service:
Hi,
We would recommend sticking to the 145mm length. These Brompton 145mm spokes would be suitable, this length is only used by Brompton normally for the radial front wheels but that is with Brompton rims rather than these rims so they can still be used normally. We also do other 145mm spokes that aren't Brompton spokes that will also work fine.
Thanks.
We would recommend sticking to the 145mm length. These Brompton 145mm spokes would be suitable, this length is only used by Brompton normally for the radial front wheels but that is with Brompton rims rather than these rims so they can still be used normally. We also do other 145mm spokes that aren't Brompton spokes that will also work fine.
Thanks.
Spokes To Build Bwr Brompton Wheel?
By Gilles
15 Nov 2016
Which set of spokes nipples should I get to build a BWR-based Brompton wheel?
Thank you.
Thank you.
SJS Customer Service:
Hi,
To build this rim with a BWR hub you'll need 145mm spokes.
Thanks.
To build this rim with a BWR hub you'll need 145mm spokes.
Thanks.
Schrader Valve ?
By Anonymous
24 May 2016
SJS Customer Service:
Hi,
These rims are drilled for Schrader valves.
Thanks.
These rims are drilled for Schrader valves.
Thanks.
Fitting Of Schwalbe Marathon Tire
By Anonymous
05 Nov 2015
I have heard that the Schwalbe Marathon Tire is very tight on some 16 inch (349) rims, is this rim easy to fit the tire?
SJS Customer Service:
Hi,
Schwalbe marathons are some of the harder tyres to fit no matter what rims you are running, so although they will definitely fit to these rims, they won't be as easy as some other tyres.
Thanks.
Schwalbe marathons are some of the harder tyres to fit no matter what rims you are running, so although they will definitely fit to these rims, they won't be as easy as some other tyres.
Thanks.
What Is The Erd Of This Rim
By Anonymous
05 Nov 2015
Can you please list the ERD of this rim
SJS Customer Service:
Hi,
The ERD of this rim as measured by us is 323mm.
Thanks.
The ERD of this rim as measured by us is 323mm.
Thanks.
