SJSC 26 x 1 3/8 590 Alloy Rim - Silver - 36 Hole

Customer Reviews (1)
4 / 5| Write your review
£19.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :

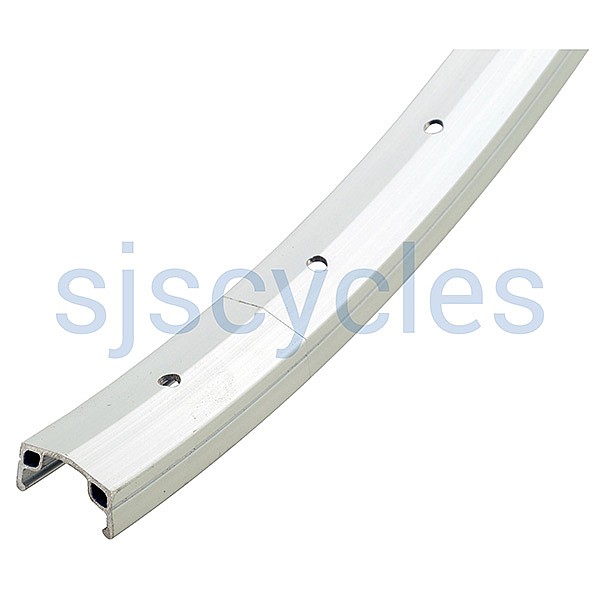

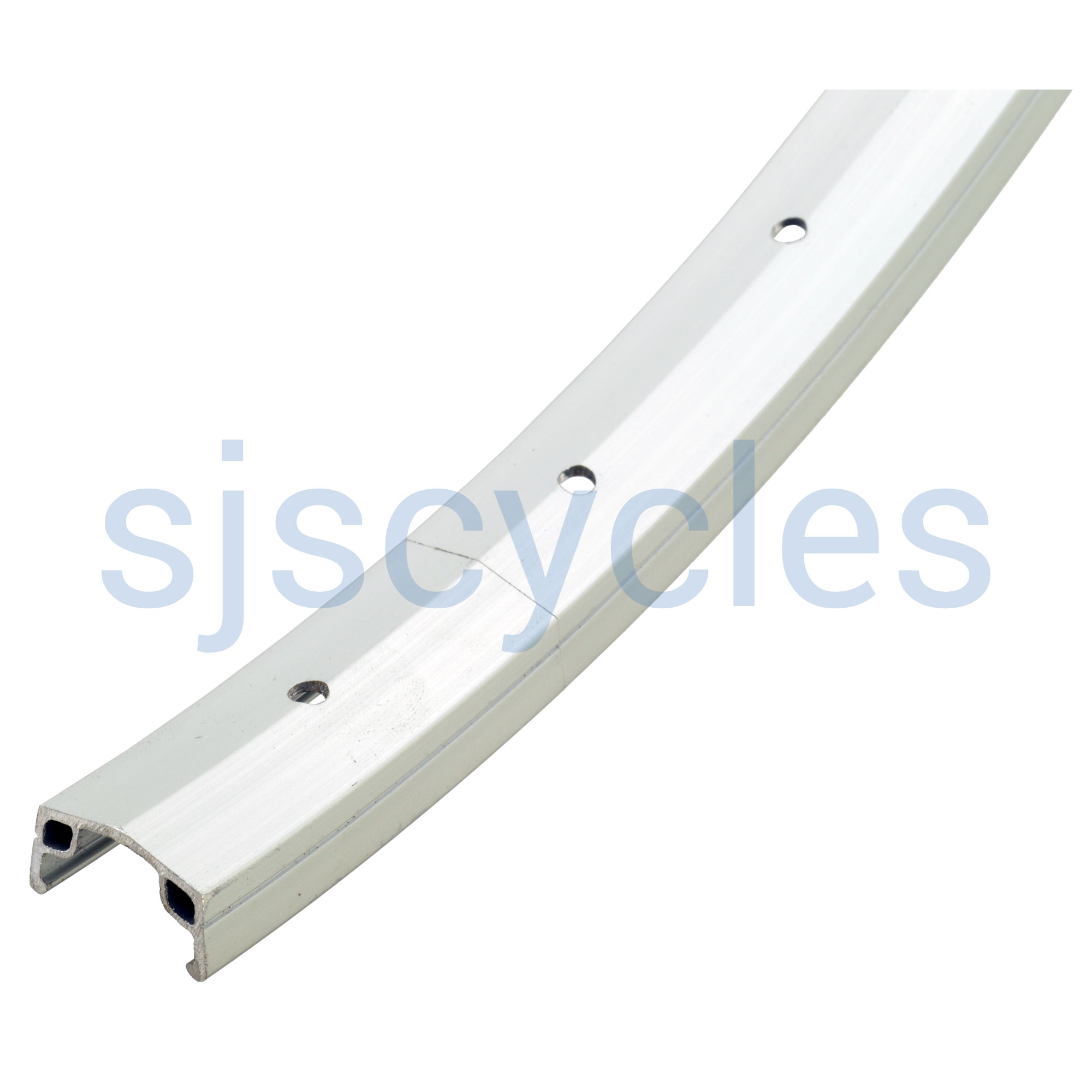

Extruded alloy rim with pinned butted joint and wear indicators drilled for woods or Schrader valve. 26mm wide, 15.5mm deep.

Width - 26mm External, 18mm Internal
ERD - 580mm
Related Products
Product Reviews (1)
Questions & Answers (3) Q & A
Download File
Related products
Wheel Build with 14g DT Champion Stainless SILVER spokes - per wheel Wheel Build with 14g DT Champion Stainless SILVER spokes - per wheel £47.28 Inc VAT Quick view
Product Reviews (1)
Overall Product Rating 4 / 5
Rims for old utility bike
By BromptonMan
15 Mar 2020
4 / 5
I recommend this product
ConsInternal finish of joint could have been better
ProsTyres grip onto rim !
I used a pair of these to build wheels for our utility bike. The old steel wheels had seen much better days and fairly new Schwalbe Delta Cruisers had an alarming habit of ‘popping off’ the rim when inflated above 40PSI as the rims were not clincher design. These were the 2nd pair of wheels I have built and I found initial tensioning a bit tricky as they do not have eyelets and have offset spoke holes. However, they have built a good pair of wheels that ride well. I did have to smooth of around the joint inside the rim as I felt the residual burr might damage the tube/tyre. I used Schwalbe 20-559 inner tube tape which although a bit of a struggle to fit works well.

I can now inflate the tyre to the max 65PSI with improved ride.
Questions & Answers (3)
Recommended spoke tension
11 Aug 2020
Hello, could you tell me the recommended spoke tension for these rims please?
Unfortunately this is not available information from the manufacturer.

Thanks - 13/08/20
Sturmey Archer wheels rebuild
29 May 2020
hi. Can you recommend the rims & spokes I need to rebuild the 26" wheels on my 70s Sturmey Archer hubs?
We would need to know a lot more information such as; wheel size, tyre width, brake type, exactly which hubs you have etc.

Thanks - 01/06/20
Hallo. Were you ever able to measure the ERD of these rims ? Regards.
23 Nov 2017

We have measured the ERD of these rims as 580mm.
