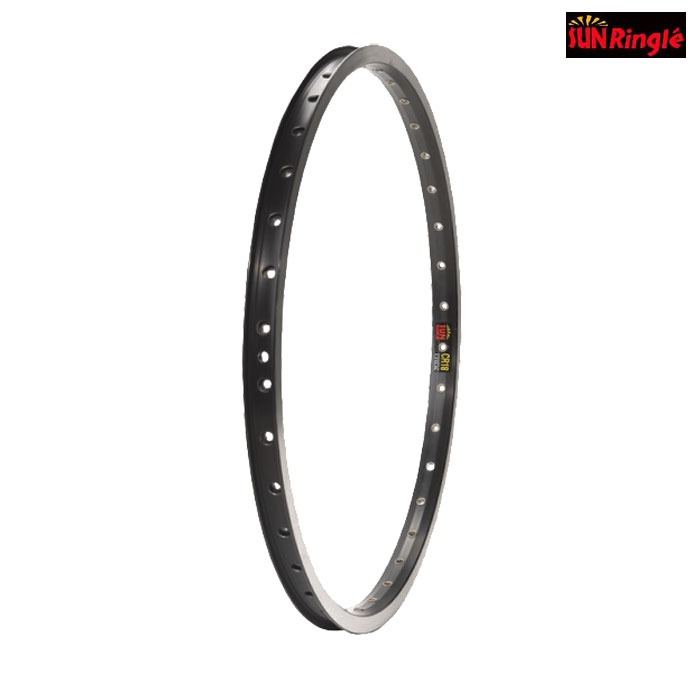

Sun CR18 16 x 1 3/8 349 ABT Alloy Rim - Black - 32 Hole

£34.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
A very high quality rim in the 349 size, with ABT (advance brake track) machined sidewall, with eyelets.
Drilled for schrader.
Overall width 22.4mm, inner well width 17mm.
Weight: 290g
ERD - 340mm
Related Products
Product Reviews (0)
Questions & Answers (5) Q & A
Download File
Related products
Wheel Build with 14g DT Champion Stainless SILVER spokes - per wheel Wheel Build with 14g DT Champion Stainless SILVER spokes - per wheel £47.28 Inc VAT Quick view
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (5)
spoke length
15 Nov 2019
how long are the spokes if I would use it with a Shimano Nexus SG-C6010-8RV 8-Speed 32h, and whether it can be used for rim/v brake? Thanks
Hi there,

The spoke size that you would need is approximately 160mm. These can indeed be used with rim brakes.

What spoke size would I need?
15 May 2019
For use with 32 hole Alfine 11 on a Brompton? (I've heard 1x cross pattern is best.)
Hi there,

The length required for this build in a 1 cross pattern is approximately 131mm.

23 Mar 2018
I will be using with Schwalbe tyres at 110psi. The std Brompton 28 hole rim has a ridge to stop the tyre blowing off. Is this rim suitable?
Hi there,

Yes we regularly use / sell this for use on Bromptons with up to 115PSI.

Spoke lengths
16 Jan 2018
What length spokes would I need to build this around a Sturmey SC2 with coaster and a Tiagra 32h front hub? Thanks
Hi there,


Assuming the Tiagra hub is a 4500 or 4600;

For 1x 155mm, 2x 160mm, 3x 166mm.


For 2x LH 152/153mm RH 149/150mm, 3x LH 164mm RH 161mm.

Hi What Size Spokes Are Needed To Build A Rohloff Into This Rim.
20 Sep 2016

You'll need 128mm spokes, this is when built one cross. You will also need to distort the eyelets slightly to better accept the sharp spoke angle.
