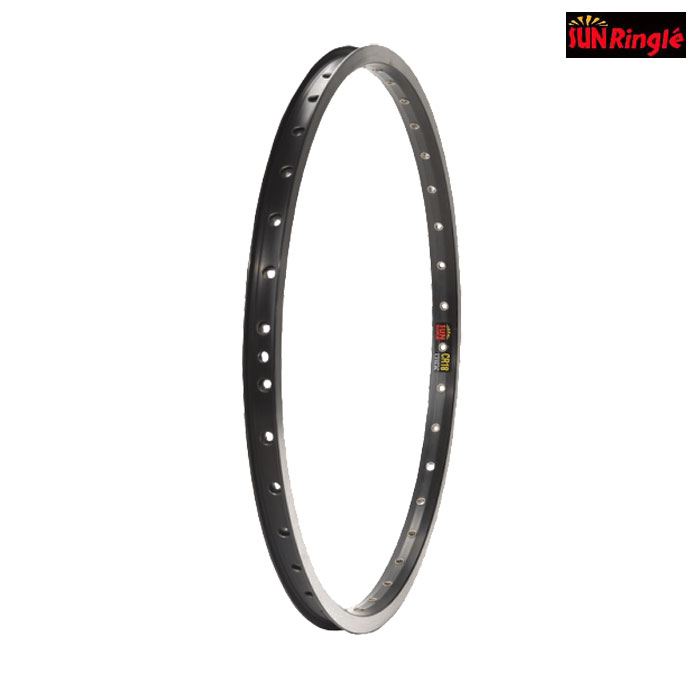

Sun CR18 16 x 1 3/8 349 ABT Alloy Rim - Black - 36 Hole
£34.99
was
£34.99
was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Details
Presta Drilling Eyelet. A very high quality rim in the 349 size, with ABT (advance brake track) machined sidewall, with eyelets, drill valve to schraeder if needed.
Overall width 22.4mm, inner well width 17mm.
Weight: 290g
ERD - 340mm
Overall width 22.4mm, inner well width 17mm.
Weight: 290g
ERD - 340mm
Specification
Downloads
Download File
Related products
Wheel Build with 14g DT Champion Stainless SILVER spokes - per wheel
£47.28 Inc VAT
Quick view
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (7)
is it totally black or with silver colour on brake track
By jimmy
14 Jan 2024
SJS Customer Service:
Hi
Thank you for your enquiry, I can confirm that the braking surface on this rim is Silver & not Black like the rest of the rim.
Kind Regards. JP 15/01/24
Thank you for your enquiry, I can confirm that the braking surface on this rim is Silver & not Black like the rest of the rim.
Kind Regards. JP 15/01/24
What exact diameter is sun cr-18 349mm?
By Anonymous
19 Sep 2020
Checked on Sun Components website and they don't have cr-18 in 16
SJS Customer Service:
Hi, these are 16
Can I use this with Sturmey 8 speed hub.
By Colum Phillips
26 May 2020
What diameter and length of spokes will I need to fit a Sturmey archer XRF8(W) eight speed hub.
Thanks.
Thanks.
SJS Customer Service:
2mm (14g) spokes will be fine, you can calculate the lengths required here (copy and paste the link) I suggest you build it 2X otherwise the exit angle at the spoke nipple will be severe:
https://www.sapim.be/spoke-calculator
RT
https://www.sapim.be/spoke-calculator
RT
What size are the nipple hole on this rim?
By rowcha
11 May 2020
SJS Customer Service:
Hi, they are 5 mm. Thanks
hi can i use this for brompton rear wheel and also isit kojak friendly ?
By karno
26 Oct 2017
SJS Customer Service:
Hello,
This will work absolutely fine as a wheel for a Brompton, And Kojak tyres should go on there absolutely fine.
Thanks.
This will work absolutely fine as a wheel for a Brompton, And Kojak tyres should go on there absolutely fine.
Thanks.
Is this rim okay to take a 25 MM. Wide tyre.?
By Tim Pecheur
29 Jul 2017
SJS Customer Service:
Hi,
Although we definitely would not recommend anything narrower you should be fine to fit a set of 25mm tyres to these rims.
Thanks.
Although we definitely would not recommend anything narrower you should be fine to fit a set of 25mm tyres to these rims.
Thanks.
What Is The Suitable Tape For Rim Sun Cr18 16 X 1 3/8 349 Abt Alloy Rim 36 Hole?
By Ivan Platas
06 Jun 2017
I would like to know the best choice for the protection tape for the rim Sun CR18 16 x 1 3/8 , 349 ABT Alloy Rim - Black - 36 Hole. I have seen that there are differences in widths and circunferences between th Jtekt or Bromptons, and I would like to know what is the best option.
I would also like to acquire the right spokes to be mounted with the ICLETTA 36 holes HUB. Could you help me finding out the right length of spokes?
Thank you in advanced for your help and support.
Best regards,
Ivan
I would also like to acquire the right spokes to be mounted with the ICLETTA 36 holes HUB. Could you help me finding out the right length of spokes?
Thank you in advanced for your help and support.
Best regards,
Ivan
SJS Customer Service:
Hi,
The best tape for this rim is the Jtek, SJSC part 38109. Unfortunately without having the hub here it is impossible for us to calculate the spoke length you need. However the rim ERD is 340mm if you wanted to measure the hub yourself and calculate the spoke length using an online spoke calculator.
Thanks.
The best tape for this rim is the Jtek, SJSC part 38109. Unfortunately without having the hub here it is impossible for us to calculate the spoke length you need. However the rim ERD is 340mm if you wanted to measure the hub yourself and calculate the spoke length using an online spoke calculator.
Thanks.
