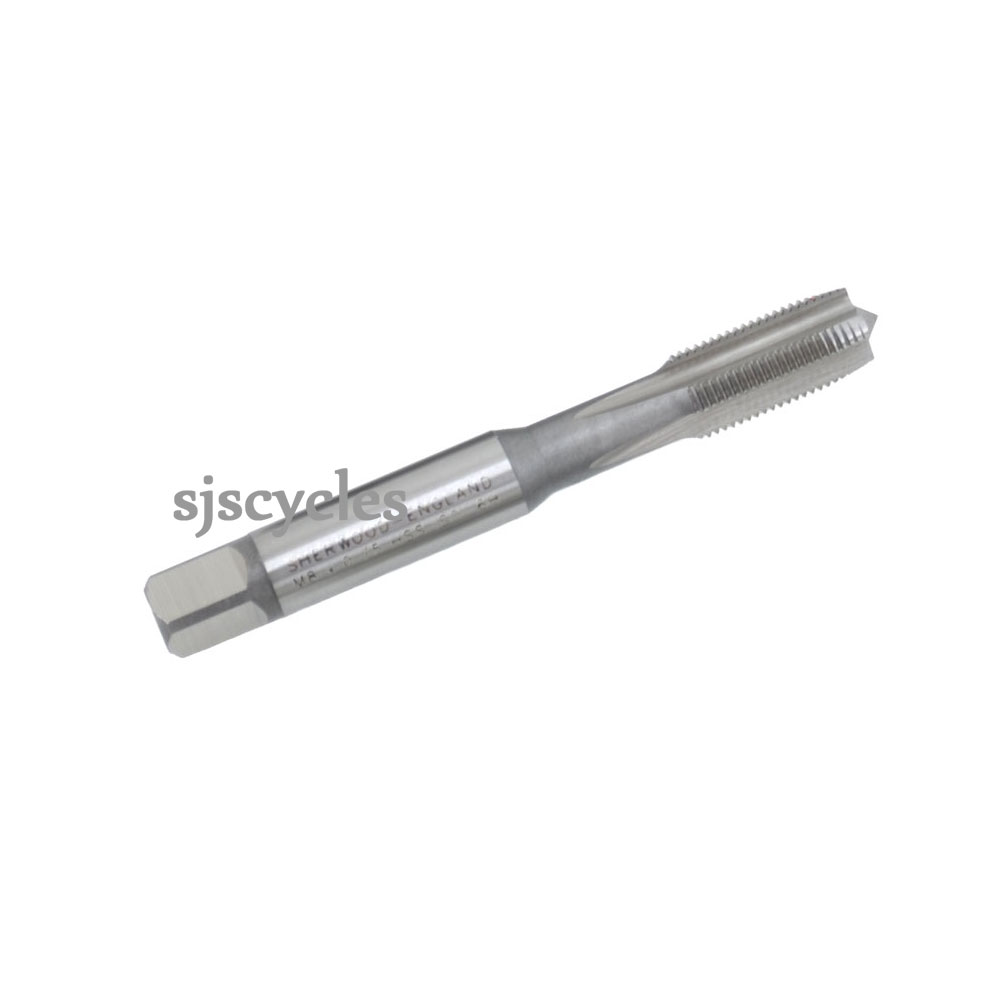

Sherwood M8.0 x 0.75 mm HSSGT STR. Flute Second Tap

Product Reviews (0)
Questions & Answers (0) Q & A
The Sherwood second tap is used after the taper tap has cut threads into the hole as far as possible. It tapers back 3 or 4 threads before a fully threaded diameter is reached. If threading a blind hole a Plug tap will be required to cut threads to the bottom of the hole.

Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.

Manufactured with precision ground flutes for producing accurate thread forms, Sherwood Taps are available in all the popular thread forms and as straight Flute `Hand` Taps in 3 leads, Fluteless, Spiral Flute, or Spiral Point Machine Taps and also Long Series.

Sherwood Tap dimensions conform to ISO529 apart from NPT Forms which conform to ANSI 94.9. Straight Flute and Fluteless Taps are manufactured with a standard Bright Finish whereas the Machine Taps have an Oxidised Finish for best results dissipating the heat build-up associated with these applications.

Thread Forms are Class 2 medium fit tolerance.
