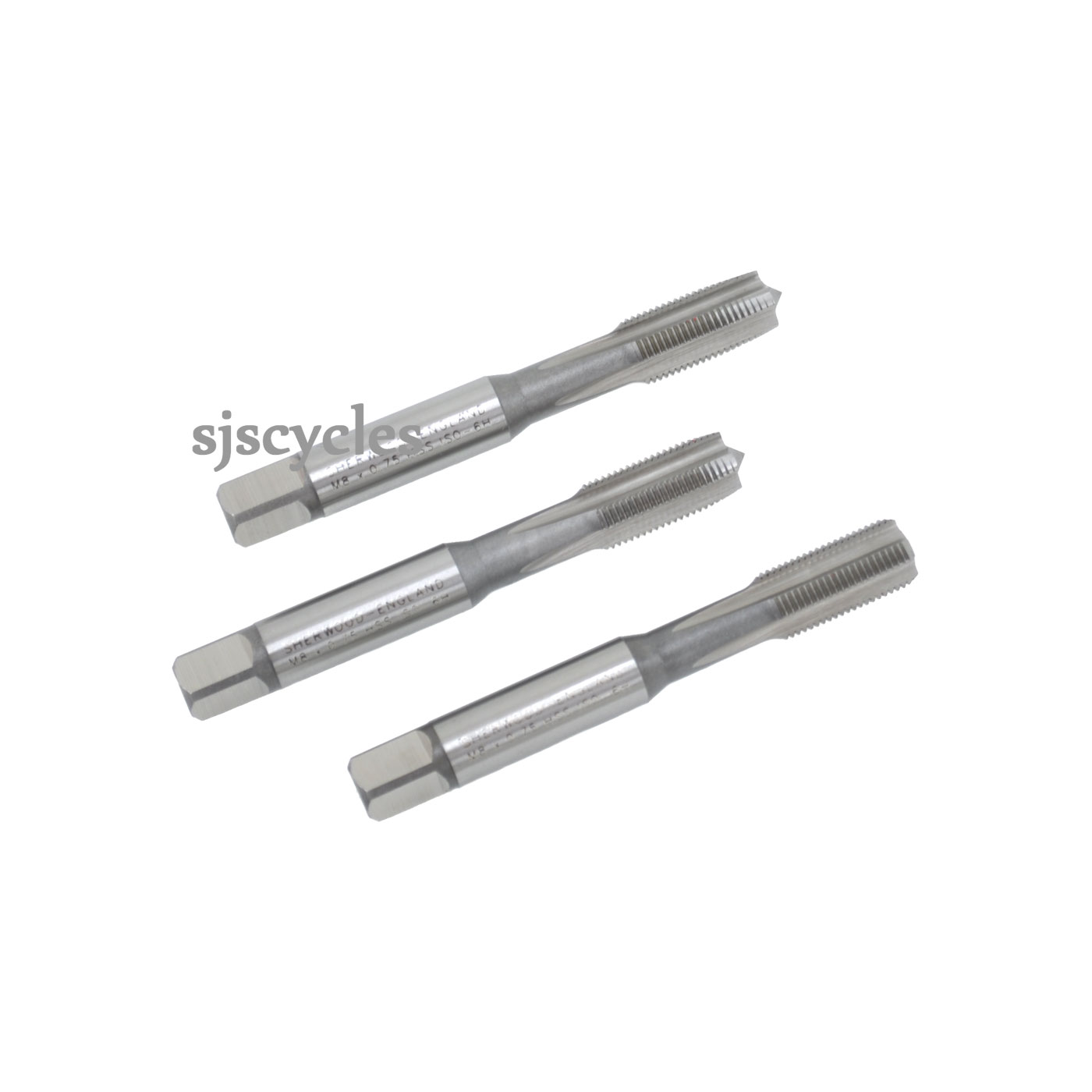

Sherwood M8.0 x 0.75 mm HSSGT STR. Flute Tap Set

£59.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Sherwood HSS taper taps are used to start cutting the thread they is tapered back from the end 6 to 10 threads before a fully threaded diameter is reached this allows the tap to be positioned easily and correctly before it starts to cut the thread.

The Second tap is used after the taper tap has cut threads into the hole as far as possible. It tapers back 3 or 4 threads before full thread diameter is reached.

The Plug tap cuts threads to the bottom of a blind hole. It is only necessary to use the full set of taps when a blind hole is to be tapped.

Each set of Sherwood taps contain one taper, second and plug lead tap.

Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.

Manufactured with precision ground flutes for producing accurate thread forms, Sherwood Taps are available in all the popular thread forms and as straight Flute `Hand` Taps in 3 leads, Fluteless, Spiral Flute, or Spiral Point Machine Taps and also Long Series.

Sherwood Tap dimensions conform to ISO529 apart from NPT Forms which conform to ANSI 94.9. Straight Flute and Fluteless Taps are manufactured with a standard Bright Finish whereas the Machine Taps have an Oxidised Finish for best results dissipating the heat build-up associated with these applications.

Thread Forms are Class 2 medium fit tolerance.
Product Reviews (0)
Questions & Answers (1) Q & A
Download File
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (1)
can this tap set be used on the eccentric srew securing holes in the shell of my 2005 Thorn exp r?
26 Nov 2021
For any information or advice on any of Thorn bikes, frames or forks please contact out dedicated Thorn bikes sales team either on 01278 441505 or [email protected] and they'll be able to provide you with all of the information you need.
