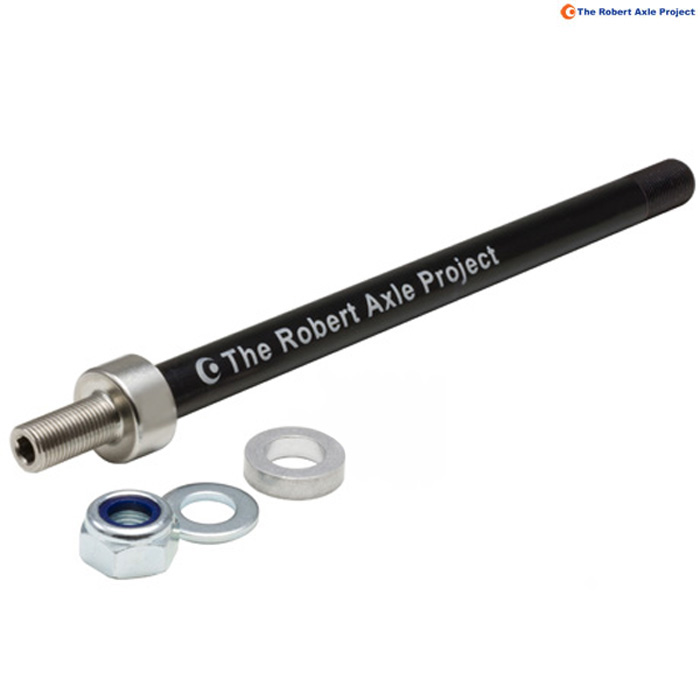

Robert Axle Project Kid Trailer Thru-Axle - M12 x 1.5 - 159/165mm
£64.99
was
£64.99
was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Details
Whether you are towing your kids, your dog, or a cooler full of refreshments, the Robert Axle Project has the thru axle solution. The Kid Trailer Thru Axles allow you to attach a “hitch mount” style trailer, to any thru-axle equipped bike. Machined & tested in the USA, the Kid Trailer axles are designed for maximum strength & ease of use.
- For use with hitch mount style trailers common with child carriers such as Thule/Chariot, Burley, InStep, Croozer & more.
- Stainless steel axle end provides an M10x1 threaded stud that accepts any hitch from popular trailers.
- Trailer hitch is NOT included. Customers will use hitch provided by trailer manufacturer.
- Installed or removed using a 5mm Allen wrench.
- Designed, built & quality tested in the USA. Proven around the world.
- Materials: 7075 Aluminum & Stainless Steel
Dimensions:
- The true length of this axle shaft is 165mm long. This axle comes with a 6mm thick tapered spacer. So this axle can be 165 or 159mm long depending on spacer used.
- Thread Pitch: 1.5mm
- For use with hitch mount style trailers common with child carriers such as Thule/Chariot, Burley, InStep, Croozer & more.
- Stainless steel axle end provides an M10x1 threaded stud that accepts any hitch from popular trailers.
- Trailer hitch is NOT included. Customers will use hitch provided by trailer manufacturer.
- Installed or removed using a 5mm Allen wrench.
- Designed, built & quality tested in the USA. Proven around the world.
- Materials: 7075 Aluminum & Stainless Steel
Dimensions:
- The true length of this axle shaft is 165mm long. This axle comes with a 6mm thick tapered spacer. So this axle can be 165 or 159mm long depending on spacer used.
- Thread Pitch: 1.5mm
Specification
Downloads
Download File
Questions & Answers (1)
Can I use this with a Liv Avail Advanced 1 2019?
By Iona
21 Oct 2024
Hi there,
My bike thru axle has the following specifications: Diameter: 12mm
Min/max length: 160.8 mm
Thread pitch: 1.5
Will a 159/165 adaptor fit anything between 159 through to 165 or only 159 and 165?
This appears to be the same adaptor as available on the Thule website. When I asked them the same question they said it wouldn't fit, but I can't find any exact matches online!
Thanks in advance for your help!
Iona
My bike thru axle has the following specifications: Diameter: 12mm
Min/max length: 160.8 mm
Thread pitch: 1.5
Will a 159/165 adaptor fit anything between 159 through to 165 or only 159 and 165?
This appears to be the same adaptor as available on the Thule website. When I asked them the same question they said it wouldn't fit, but I can't find any exact matches online!
Thanks in advance for your help!
Iona
SJS Customer Service:
The axle will fit the sizes between, provided you have used the axle finder to check this is correct then it will work. SK 21/10/24
