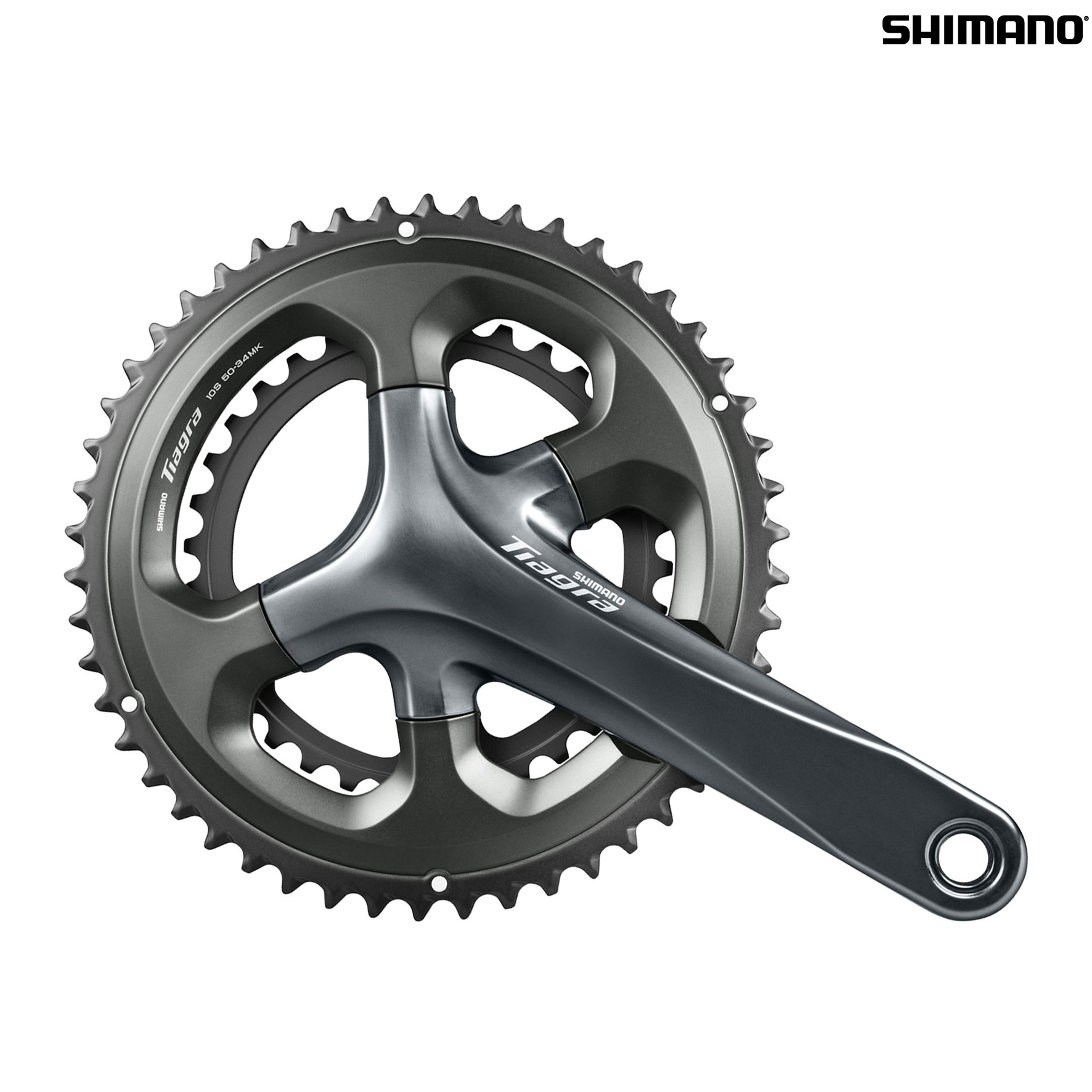

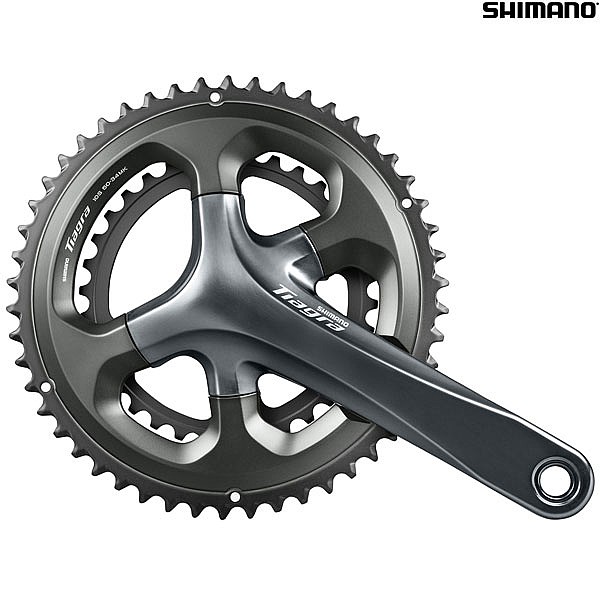

Shimano Tiagra FC-4700 10 Speed Compact Double Chainset - 50/34T

£119.99 Please note this product has selling restrictions to your country. was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
- Taking many features from pro-level equipment, this 2-piece cap-free design Tiagra chainset offers unbeatable performance
- 2-piece cap-free design is quick and easy to install whilst being lighter and stiffer than a traditional crank/ bottom bracket assembly
- SG-X chainrings feature strategically placed chain pick-up pins and tooth profiles to ensure fast and positive shifting
- Designed to work with HollowTech II type bottom bracket cups
- Compatible with 10-speed HG-X chains
- Anodized aluminium crank arms
- Lightweight aluminium chainrings
- 4 arm, 110 mm bolt circle diameter
Related Products
Product Reviews (0)
Questions & Answers (6) Q & A
Download File
Related products
Park Tool BBT-9 Bottom Bracket Tool - Shimano HollowTech II Park Tool BBT-9 Bottom Bracket Tool - Shimano HollowTech II £29.99 Inc VAT Quick view
Be the first to write a review
Feel free to leave a review of this product, good or bad it helps other customers with their buying decision.
Questions & Answers (6)
Is this suitable to replace a FSA Omega compact chainset?
09 Apr 2020
The bike is a 2010 Pinnacle road bike with a 68mm wide bottom bracket shell. The crank arm is marked "FSA CK-4000" and the bottom bracket "Mega Exo BB-4000". What bottom bracket would be most suited? Thanks.
Yes, for durability I would suggest the Shimano Dura-Ace BB-9000 HollowTech II Bearing Cups (SJS Cycles part number : 34420ENG) RT 100420
Will this fit a 73mm frame?
26 Aug 2019
Hi there,

Yes, this would be compatible, although you would need to get a hollow tech II bottom bracket that would fit.

Will this work with 9spd please
05 Feb 2019
We would not recommend it, it is designed for 10 speed. It is likely to cause poor shifting if used with any other speed.

Thanks - 05/02/19
BB7141B compatibility?
11 Jul 2018
Can I use this with a BB7141B pressfit Bottom Bracket?
HI there,

This chainset is designed to be used with Hollowtech II bottom bracket cups so it wouldnt work with a pressfit im afraid.

Is there a 165mm crank length option?
28 Oct 2017
I'm trying to replace a 165mm 52/36 on my wife's bike with a 50/34 but everywhere I look I can't find the 165mm length? Is it not available?

Unfortunately the Tiagra FC-4700 chainset was never produced in a 165mm length, so we can only offer 170mm, 172.5mm and 175mm I'm afraid.

Tiagra FC-4700: is it possible to replace outer ring with 46T?
11 Aug 2017
I find the gearing with the 50T outer too high for my age and am trying to lower it.
You can FIT the Shimano Ultegra FC-6800 110mm BCD 4 Arm Outer Chainring - MB Type - 46T (our item # 36337) although the shifting MAY not be quite so slick. You'll also need some bolts such as # 38698
