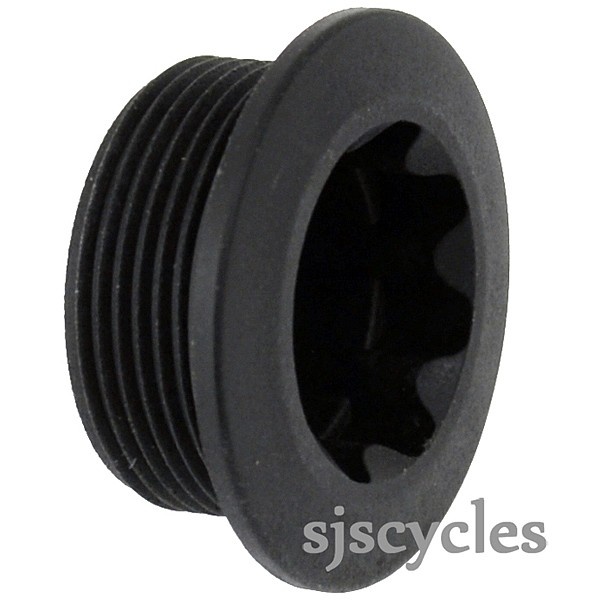

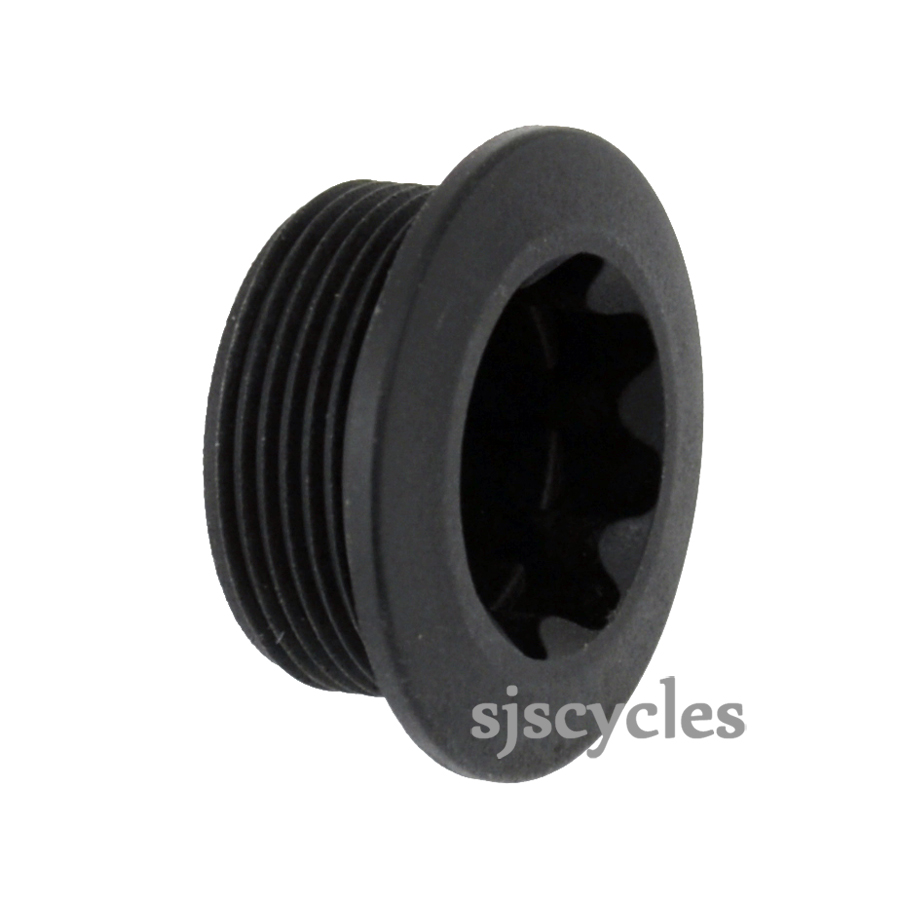

Shimano Deore LX FC-T661 Crank Arm Fixing Bolt - Y1KS13000
£2.99
was
£2.99
was
Manufacturer :
SJS Cycles part number :
Manufacturer part number :
Details
For use with Shimano Deore LX FC-T661 9 speed triple chainsets.
This crank arm fixing bolt can also be used on the following chainsets:
- Shimano Ultegra FC-6750-G / FC-6750 / FC-6703-G / FC-6703 / FC-6700-G / FC-6700
- Shimano 105 FC-5750 / FC-5703 / FC-5700
- Shimano Tiagra FC-4650 / FC-4603 / FC-4600
- Shimano Sora FC-R3030 / FC-R3000 / FC-3550 / FC-3503
- Shimano FC-CX70 / FC-CX50
- Shimano FC-E6100
- Shimano FC-RS500 / FC-RS400
- Shimano FC-R601 / FC-R565 / FC-R563 / FC-R460 / FC-R350
- Shimano Alfine FC-S501
- Shimano Deore LX FC-T671
- Shimano Deore FC-T611
- Shimano Alivio FC-T4060
These are an "A" match which indicates that the parts are the same in materials, appearance, finish & size etc.
If the correct crank arm fixing bolt is unavailable you can also use the bolt from the following chainsets:
- Shimano Dura-Ace FC-7950
- Shimano Dura-Ace FC-7900
- Shimano FC-E8000
- Shimano Alivio FC-M4060
These are a "B" match which indicates that the parts are usable, but differ in materials, appearance, finish & size etc.
Genuine Shimano replacement part.
This crank arm fixing bolt can also be used on the following chainsets:
- Shimano Ultegra FC-6750-G / FC-6750 / FC-6703-G / FC-6703 / FC-6700-G / FC-6700
- Shimano 105 FC-5750 / FC-5703 / FC-5700
- Shimano Tiagra FC-4650 / FC-4603 / FC-4600
- Shimano Sora FC-R3030 / FC-R3000 / FC-3550 / FC-3503
- Shimano FC-CX70 / FC-CX50
- Shimano FC-E6100
- Shimano FC-RS500 / FC-RS400
- Shimano FC-R601 / FC-R565 / FC-R563 / FC-R460 / FC-R350
- Shimano Alfine FC-S501
- Shimano Deore LX FC-T671
- Shimano Deore FC-T611
- Shimano Alivio FC-T4060
These are an "A" match which indicates that the parts are the same in materials, appearance, finish & size etc.
If the correct crank arm fixing bolt is unavailable you can also use the bolt from the following chainsets:
- Shimano Dura-Ace FC-7950
- Shimano Dura-Ace FC-7900
- Shimano FC-E8000
- Shimano Alivio FC-M4060
These are a "B" match which indicates that the parts are usable, but differ in materials, appearance, finish & size etc.
Genuine Shimano replacement part.
Specification
Downloads
Download File
Associated Components
Part Number
Description
Availability
Questions & Answers (4)
Is this 18mm diameter
By Richad Schwier
24 Jan 2020
SJS Customer Service:
Hi, the thread is 18mm diameter, thread depth 7mm. Overall diameter 25mm. Depth 10mm. Thanks 27/01/2020
Additionl to 105 FC565 quesiton just asked
By Anonymous
01 Mar 2018
I now see that "Shimano FC-R601-F / FC-R565" is listed as compatible n the product description - but response to the previous question is that the part isn't compatible with FC565 - which is correct, the product descriptioin or the response?! have I misunderstood?!
SJS Customer Service:
Hi there,
The previous answer was simply a misunderstanding, It is indeed compatible.
Thanks.
The previous answer was simply a misunderstanding, It is indeed compatible.
Thanks.
105 FC565 isn't listed - is this compatible please?
By Anonymous
01 Mar 2018
SJS Customer Service:
Hi there,
This is indeed compatible.
Thanks.
This is indeed compatible.
Thanks.
What Tool Do I Need To Tighten This Cap?
By Anonymous
03 Nov 2016
SJS Customer Service:
Hi,
The tool required to fit this bolt is SJSC part number 13321.
Thanks.
The tool required to fit this bolt is SJSC part number 13321.
Thanks.
